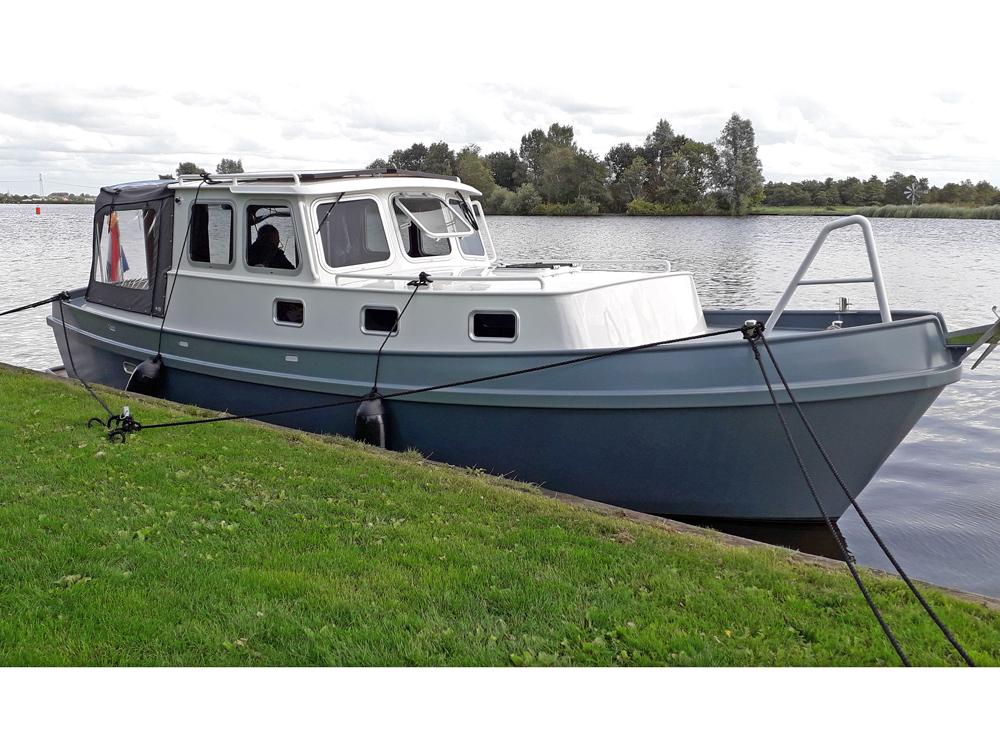

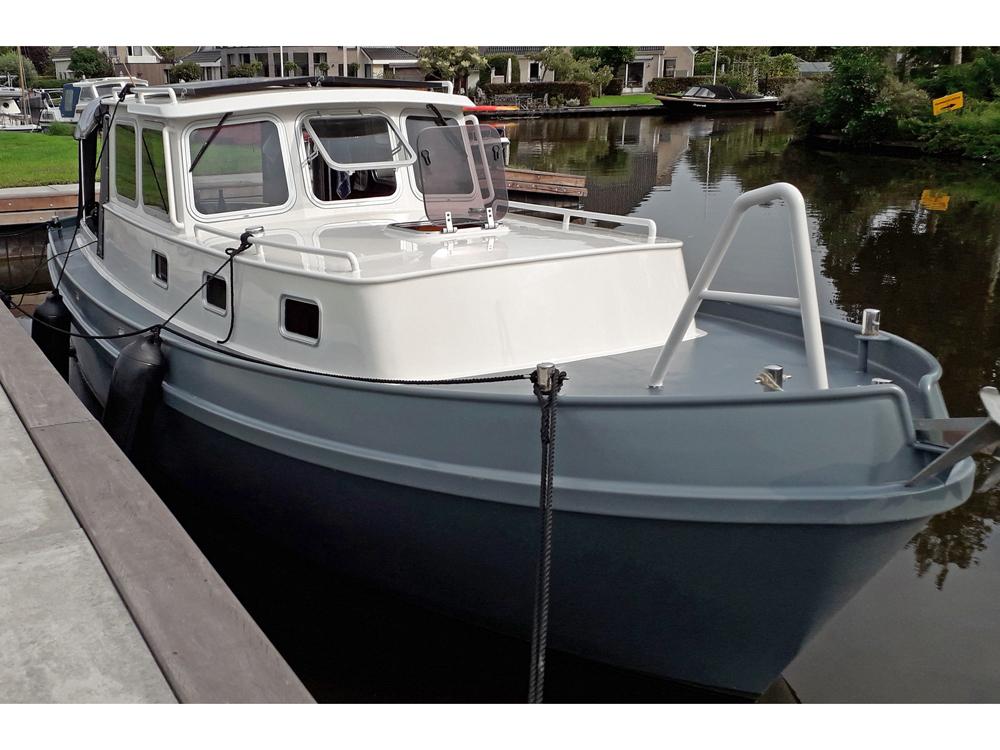

Stevenvlet 920 GSOK
headingdetails Stevenvlet 920 GSOK
€ 89 900
- lieux de couchage
2 - année construction
2016 - couchette
Workum - catégorie
Bateau moteur
Contact
Willem Beekhuis
+316-19730566
+316-19730566
Propulseur d'étrave, réservoir d'eaux usées, prise de quai, double vitrage, salle de douche séparée (!), Etc. Stevenvlet à l'état neuf avec seulement 25 heures de navigation!
- Dimensions
9,20 x 3,05 x 0,85 m. - Moteur
Abato Siyang 41 CV (30 kW) Diesel - Matérial
Acier - Numéro d'ordre
212014
Général
- Matérial
- Acier
- Forme de coque
- Souchain vif multiple
- Pont
- Acier antidérapant
- Rouf
- Acier 4 mm.
- Système direction
- Hydraulique barre à roue

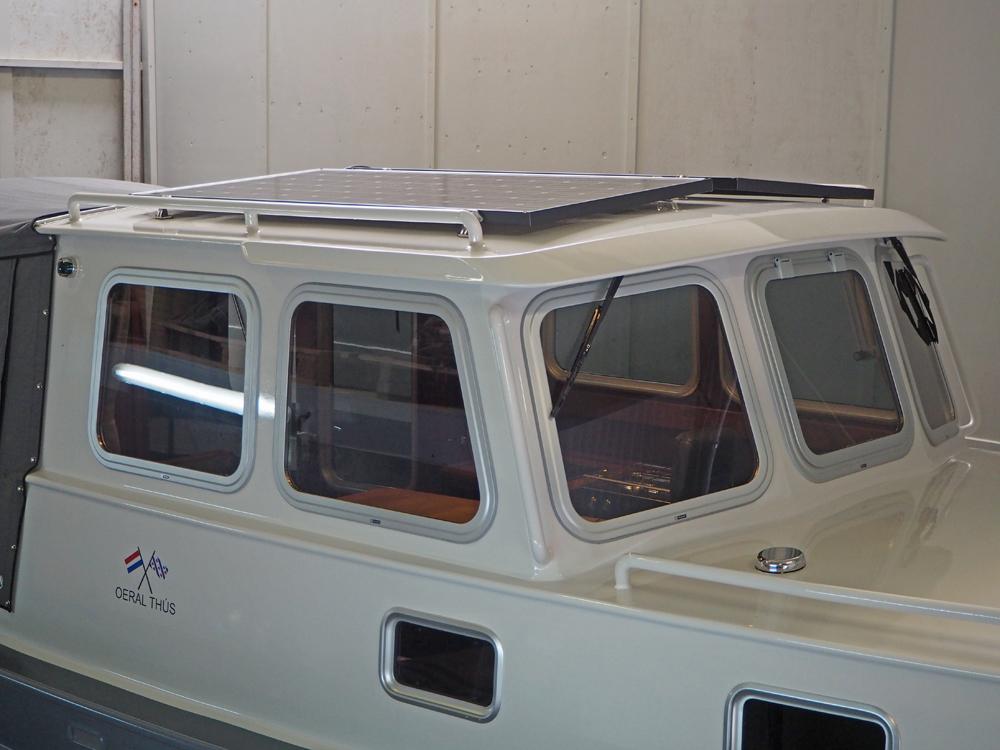

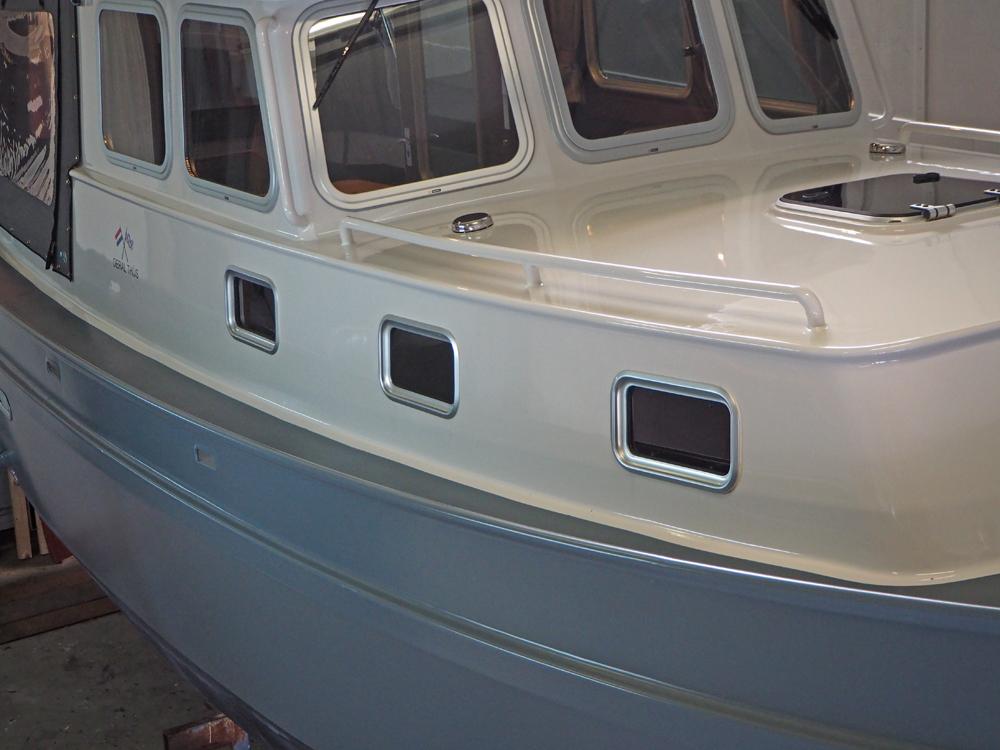

- Fenêtres
- Double vitrage teinté Marex en aluminium et hublots Vetus
- Déplacement
- Environ 8.000 kg.
- Tirant d' air
- 2,30 m.
- Concepteur
- Lageweg Jachtontwerp
Le Stevenvlet 920 est conçu pour un séjour confortable et plus long à bord pour 2 personnes. Par exemple, le Stevenvlet 920 est équipé de: Double vitrage, salle de toilettes avec WC électrique, salle de douche séparée, un cockpit spacieux. Avec un dégagement vertical de 2,30 m et un tirant d'eau de 0,85 m, les plus petites voies navigables appartiennent à la voile zone. La coque est construite à partir de 5 mm. échantillon.
Elle est à l'état neuf avec seulement 25 heures de navigation.
Hébergements
- Materiaux
- Acajou intérieur
- Salons des invités

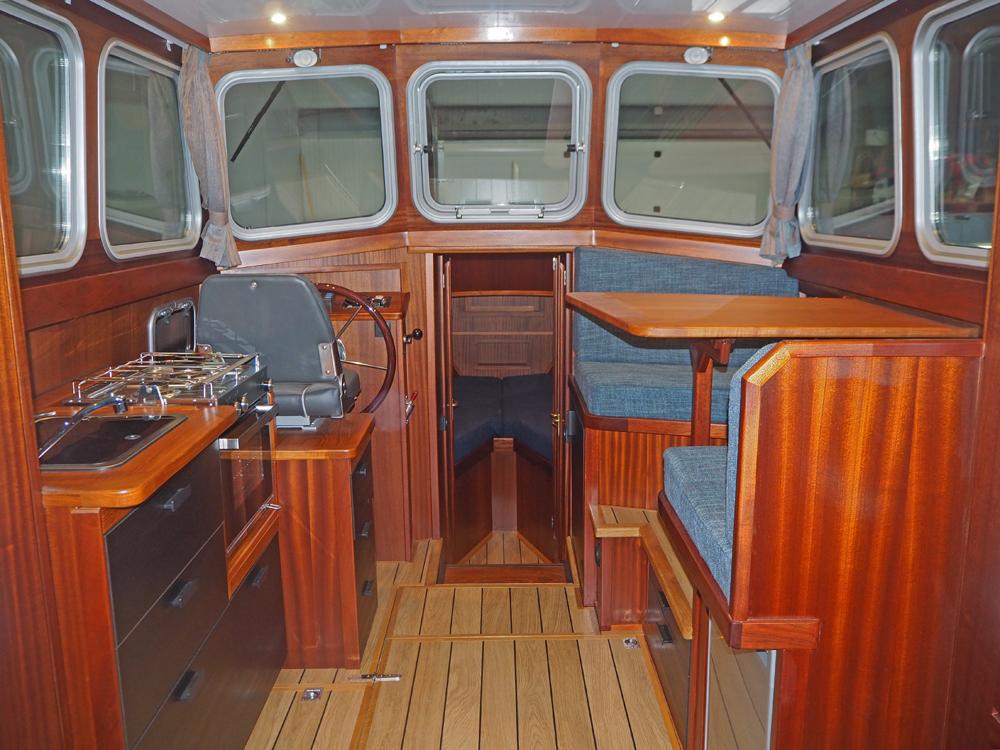

- Timonerie, Cabine en avant
- Cabines
- 1
- Nombre de couchettes
- 2
- Hauteur sous barrot timonerie
- 1,95 m.

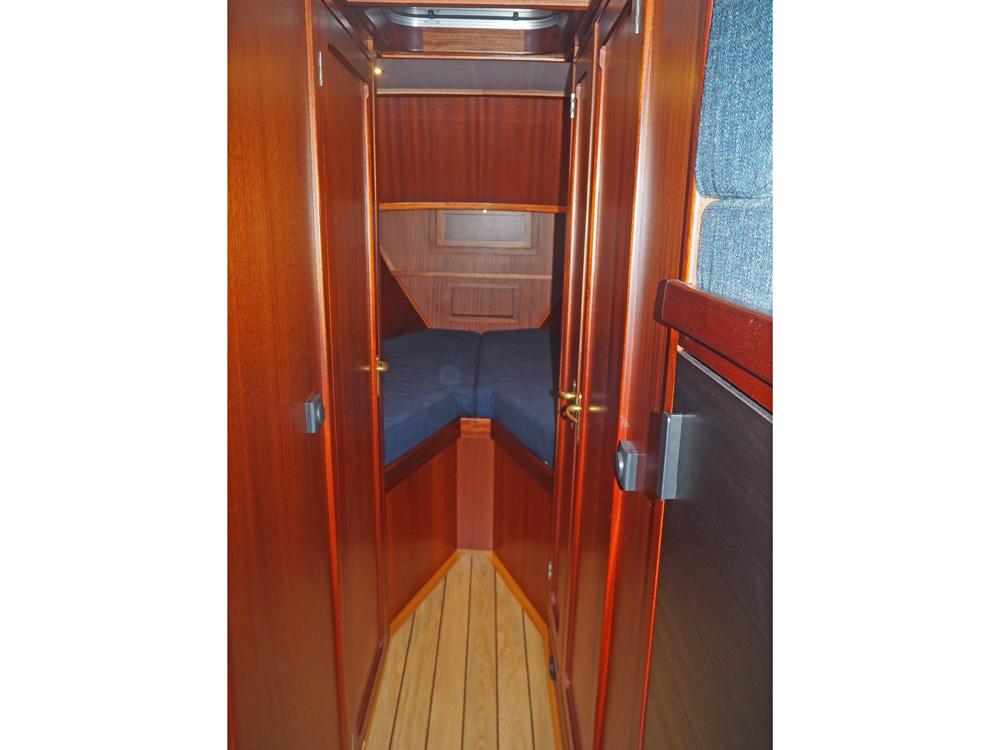

- Hauteur sous barrot cabine en avant
- 1,90 m.
- Dimensions du lit cabine en avant
- 2,10 x 0,85 m.
- Toilettes
- Compartiment de toilette avec une toilette électrique Vetus et lavabo
- Douche
- Dans un compartiment séparé
- Cuisinière

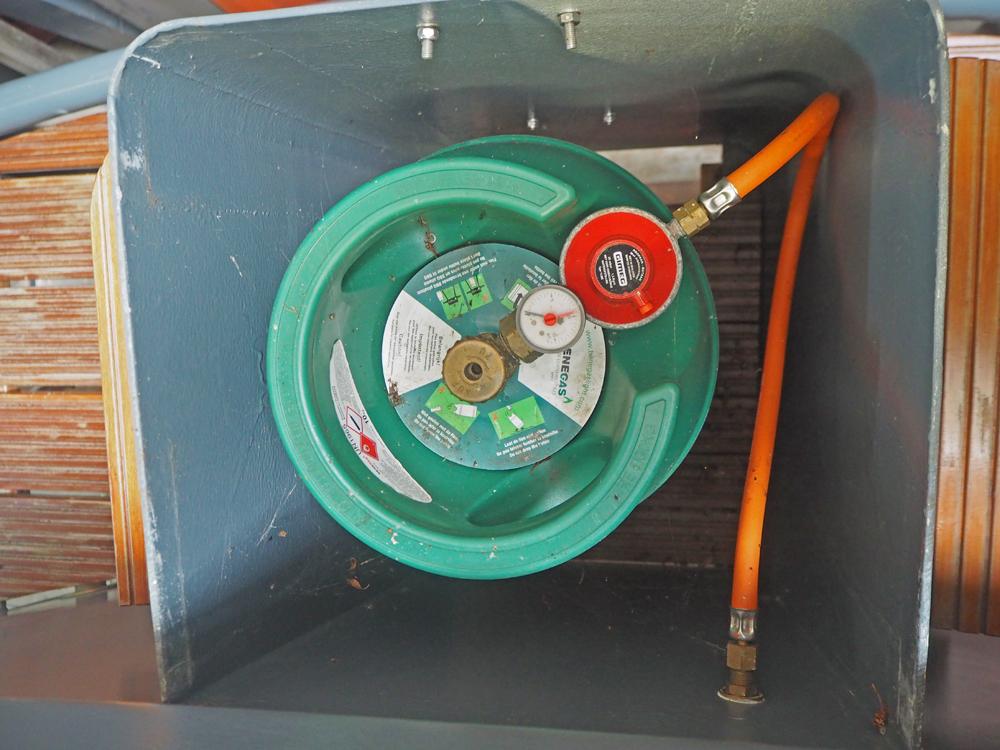

- Dometic 2 - feux à gaz avec four
- Frigo
- Dometic 78 litre
- Chauffage
- Webasto Air Top 2000

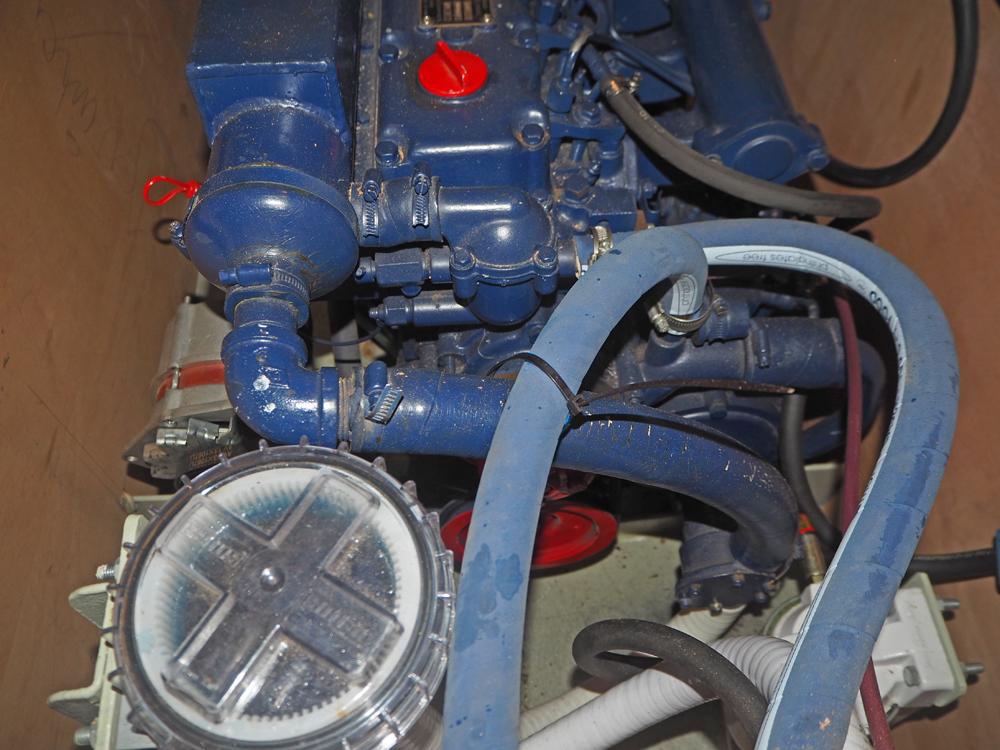

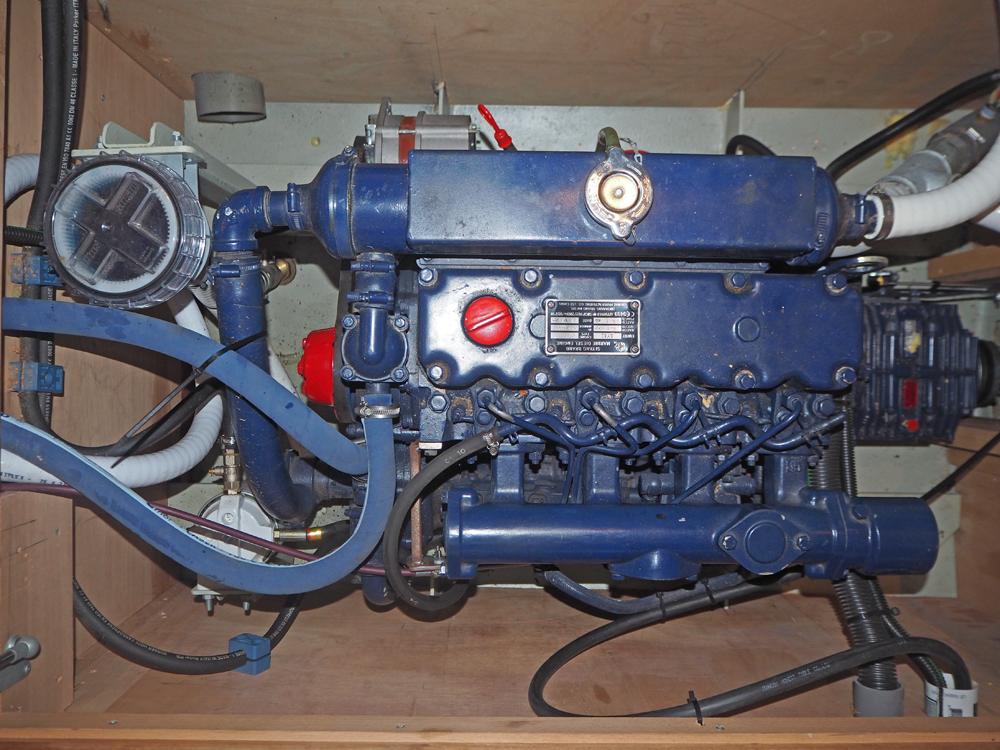

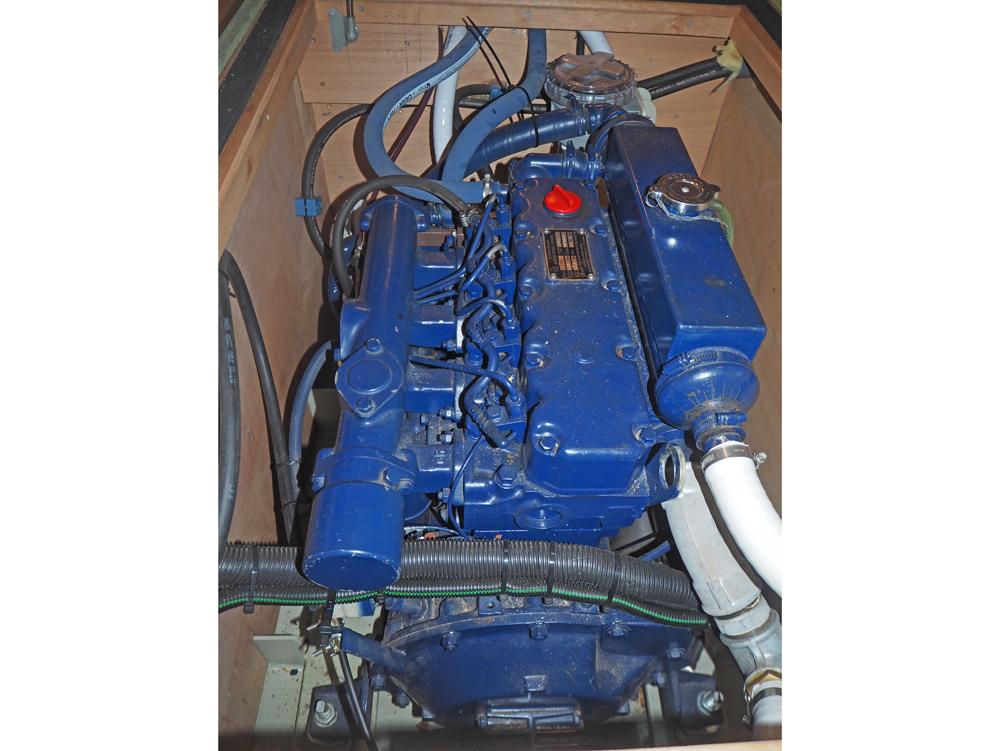

Moteur
- Marque/ Type
- Abato Siyang 4.41
- Puissance
- 41 CV, 30 kW
- Nombre des cilindres
- 4
- Refroidissement
- Refroidissement indirect
- Année construction
- 2009
- Nombre des moteurs
- 1
- Heurs
- 25
- Carburant
- Diesel
- Reservoir(s) de carburant
- 137 Litre Vetus plastique
- Jauge de tank
- Vetus

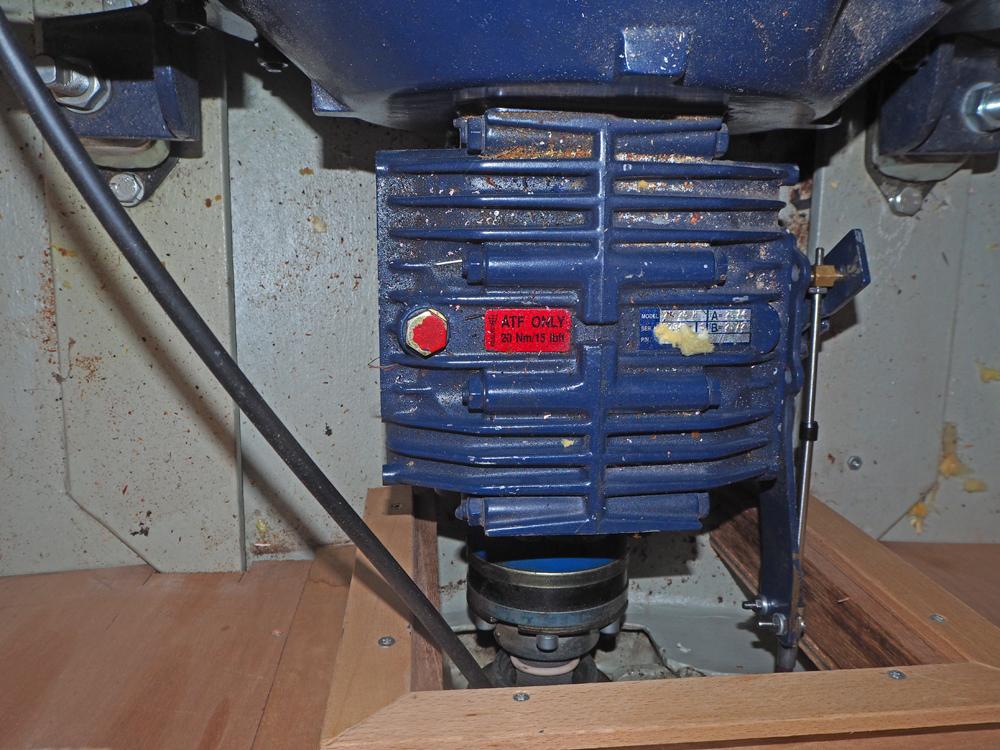

- Inverseur
- ZF méchanique
- Propulsion
- Abre d' hélice
- Presse-étoupe
- Python Drive
- Vitesse de croisière
- 6 Kn.
- Vitesse maximale
- 7 Kn.
- Mesureurs

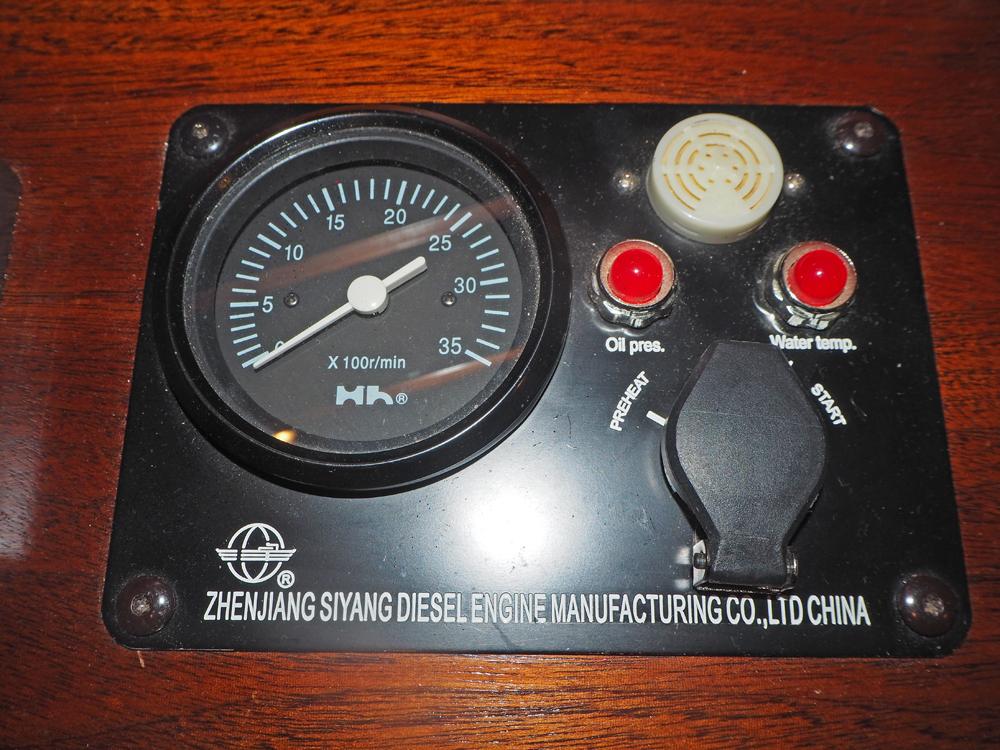

- Compte-tours
- Propulseur d' étrave
- Vetus 60 kgf
- Température alarm de pot d'échappement
- Vetus
Électricité
- Tension
- 12 et 220 Volt
- Batteries
- 1 x 74 Ah, 3 x 140 Ah
- Raccordement rive
- Avec disjoncteur
- Dynamo
- 1 x 12 Volt
- Chargeur batterie
- Victron Easyplus Compact 12/1600/70 70 A.

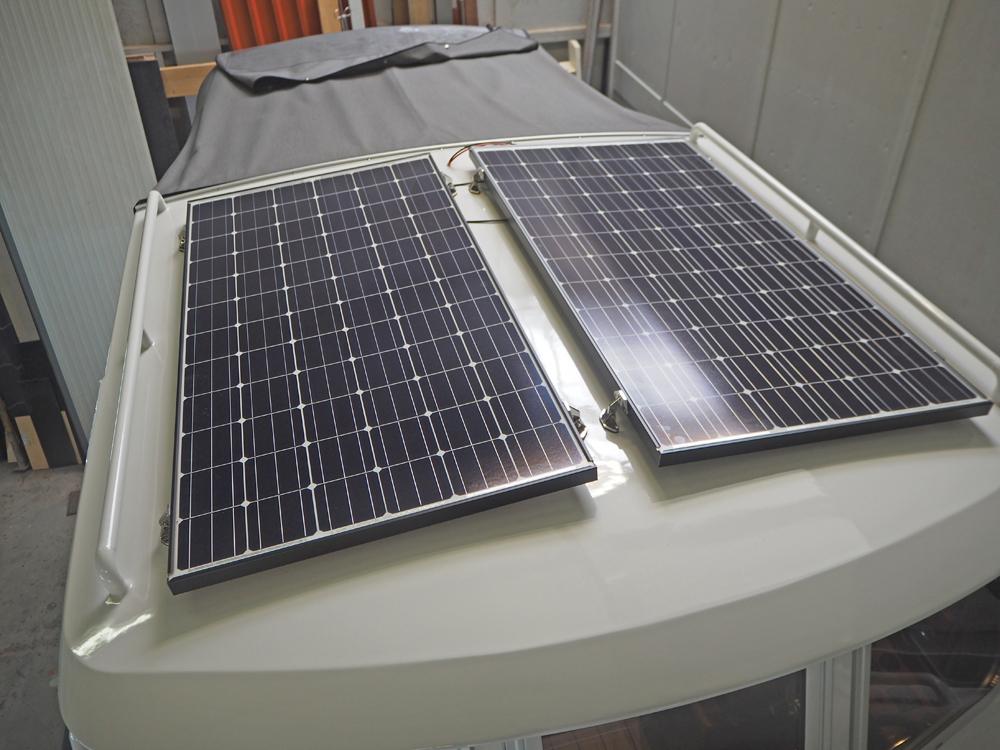

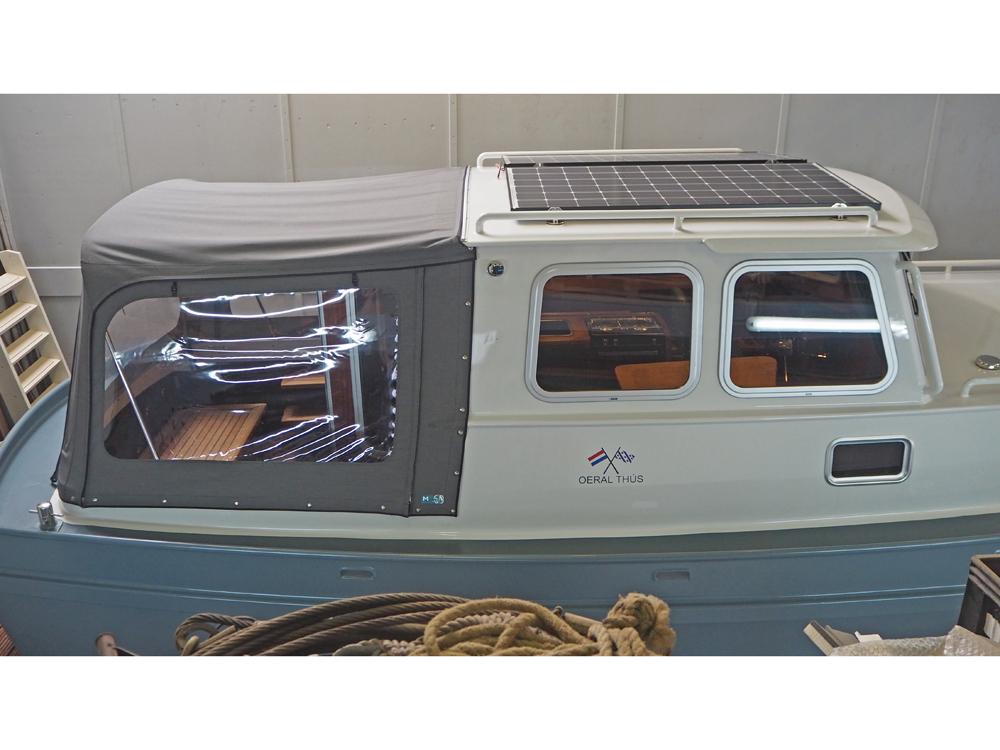

- Capteur solaire
- 2 x Panasonic 245 W. (doivent encore être connectés)
- Convertisseur

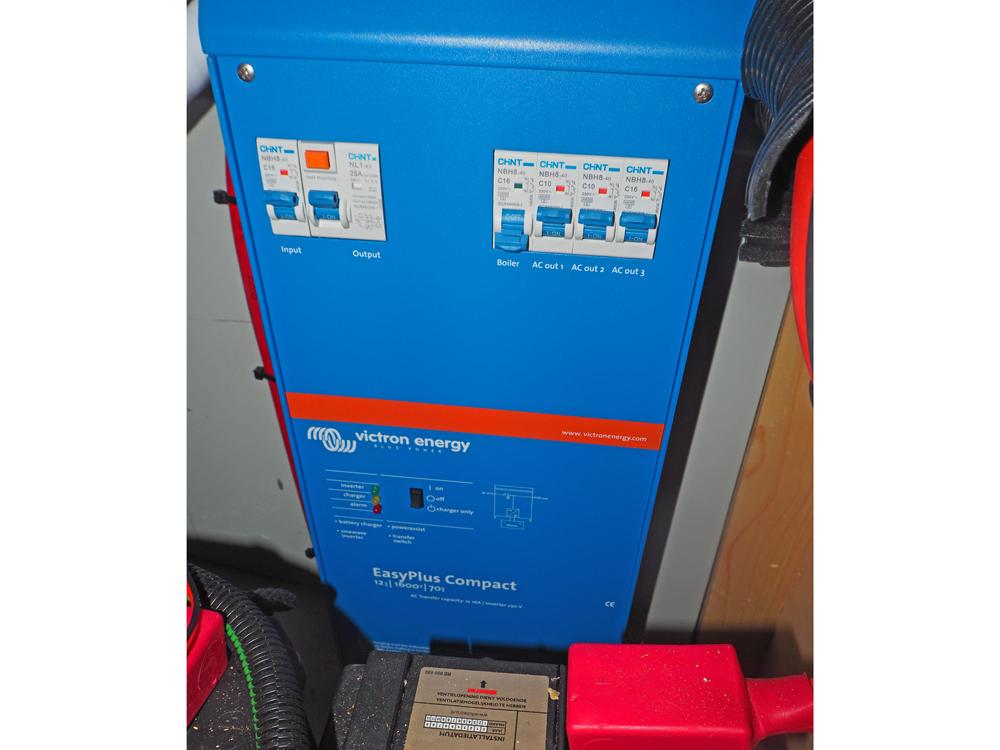

- Victron Easyplus Compact 12/1600/70 1.600 W.
- Tableau de commande
- Philippi panneau de fusibles
- Batterie-controle mètre
- Victron BMV-702
Eau
- Reservoir(s) d' eau
- 1 x 61 Litre, 1 x 137 litre (les deux Vetus plastique)
- Système pression d' eau
- Ëlectrique
- Eau chaude

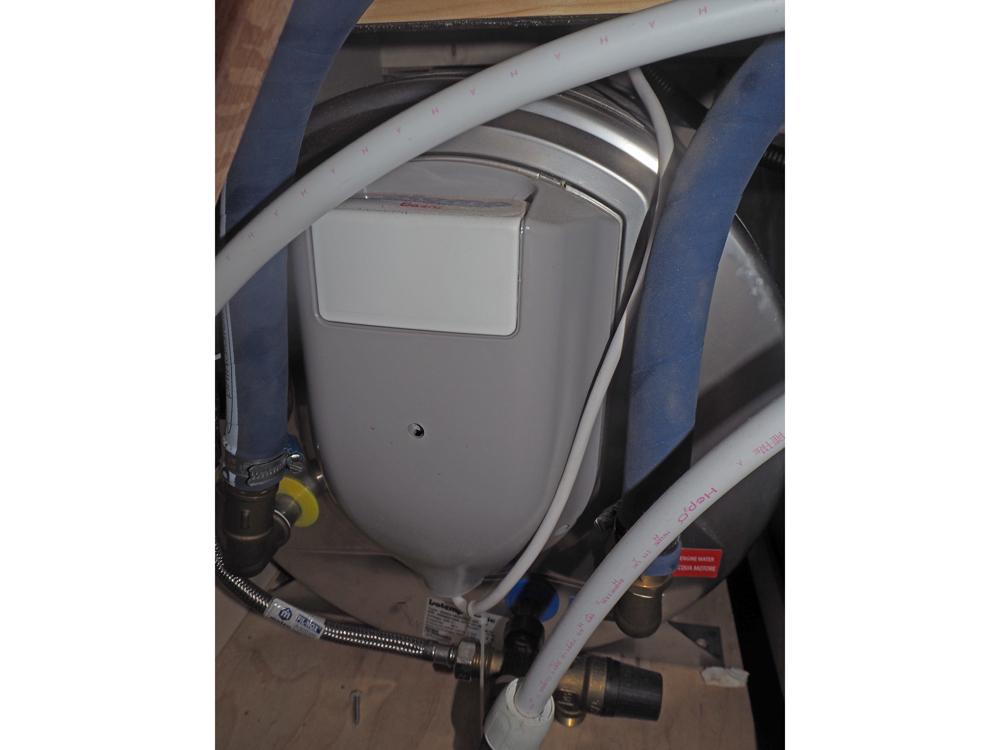

- Isotemp 40 litre cumulus (chauffée par le moteur et 220 Volt)
- Jauge d' eau potable
- 2 x Vetus
- Réservour eaux noires
- 42 Liter Vetus plastique avec vidange de pont et pompe
- Réservoir eaux noires mètre
- Vetus
Navigation et électronique
- Eclairage navigation
- Oui
- Sondeur

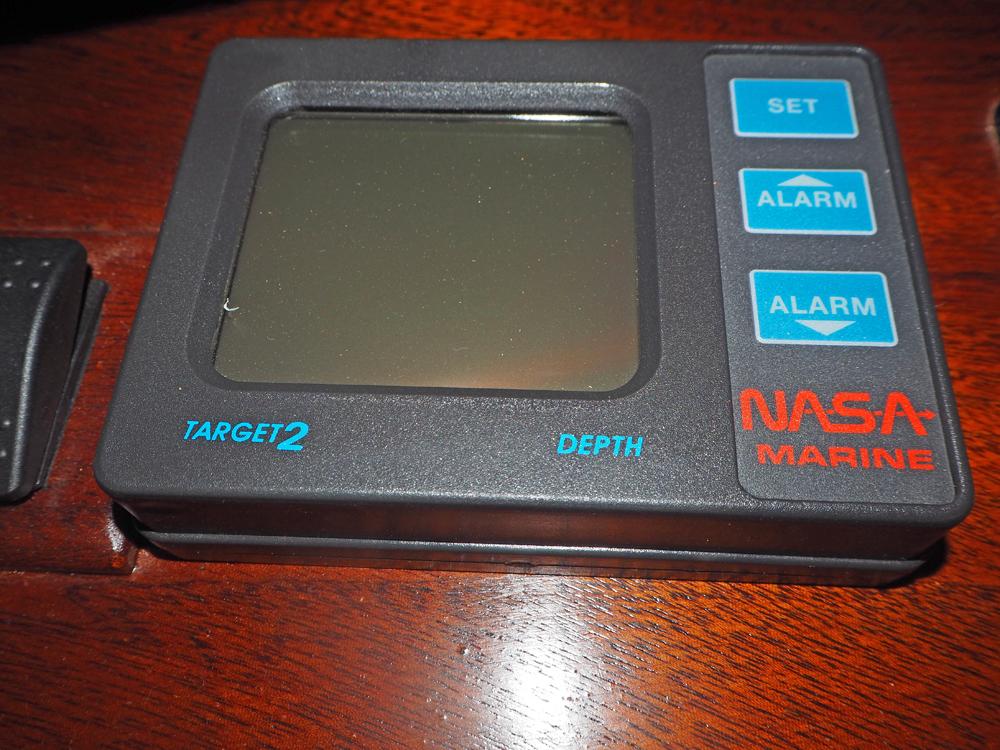

- NASA Target 2 Depth

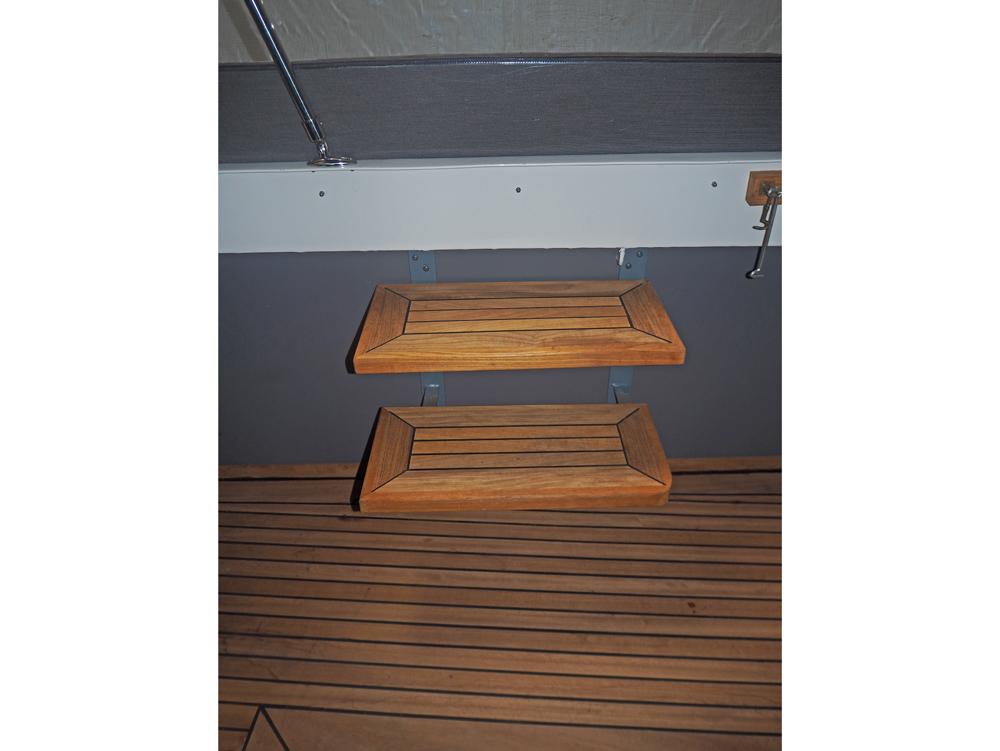

Équipement de pont
- Ancre
- 1 x
- Pompe lavage de pont
- Oui
- Liston
- Diverses poignées
- Plate-form de bain
- Acier avec bois
- Tente de pont

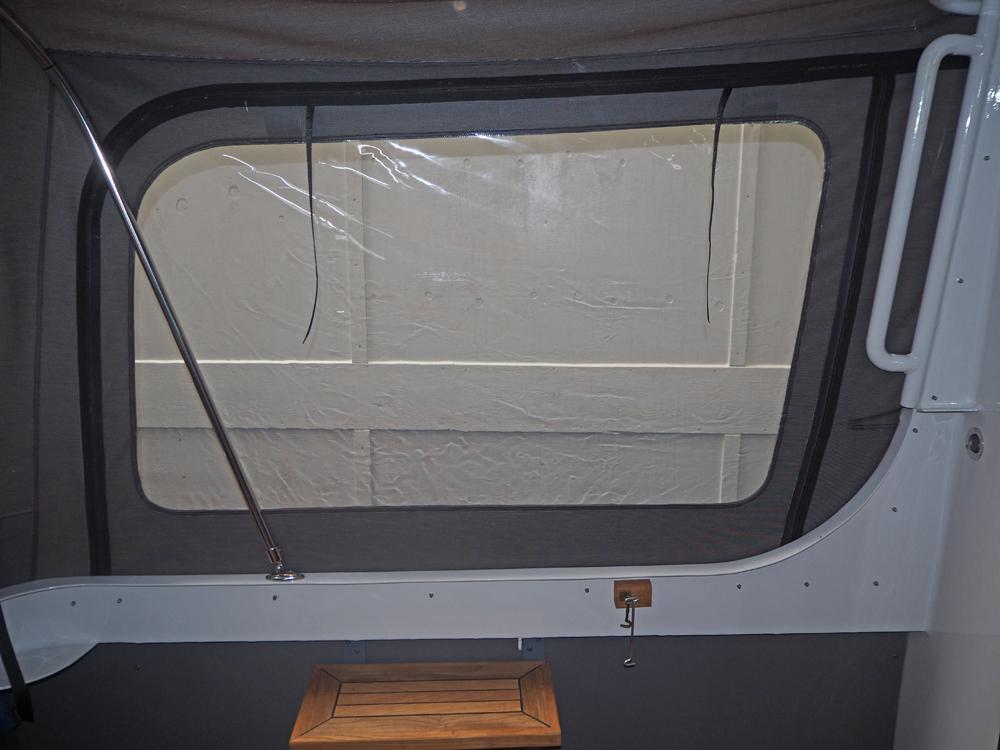

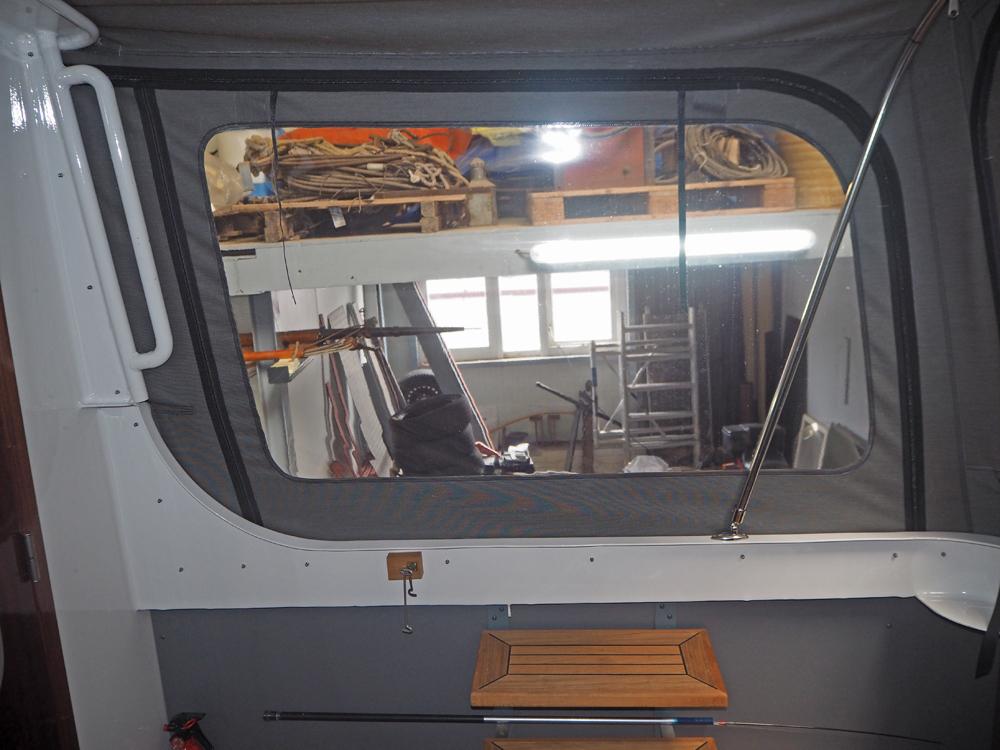

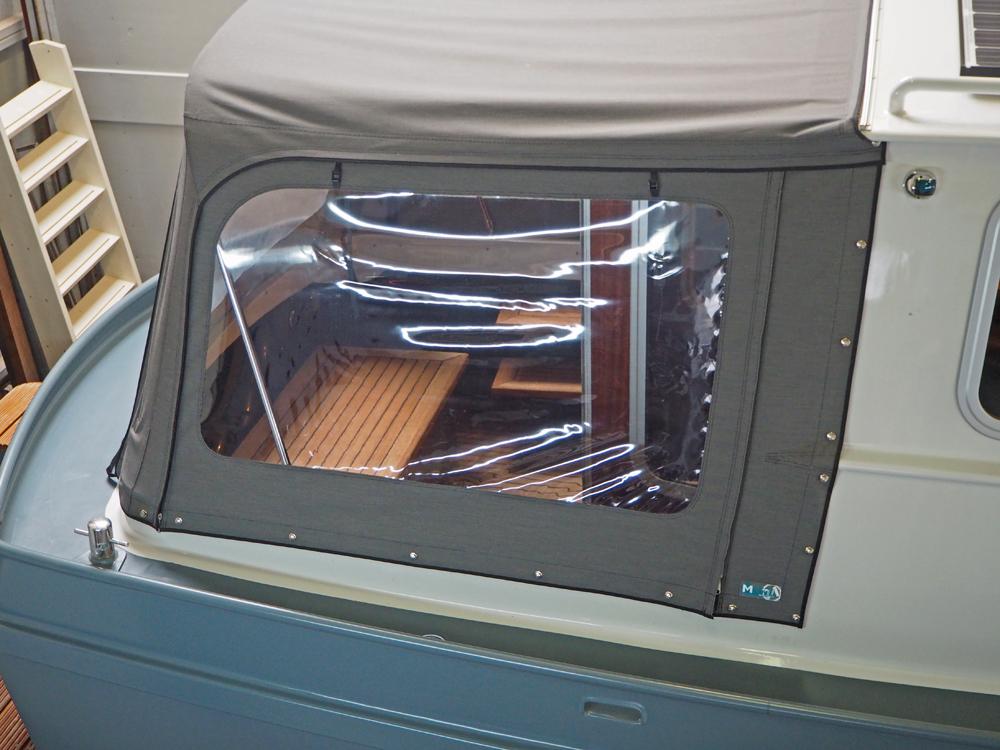

- Tente de cockpit avec cadre en inox
- Cockpit auto-videur
- Oui
- Autre
- Le cockpit est recouvert de teck.
