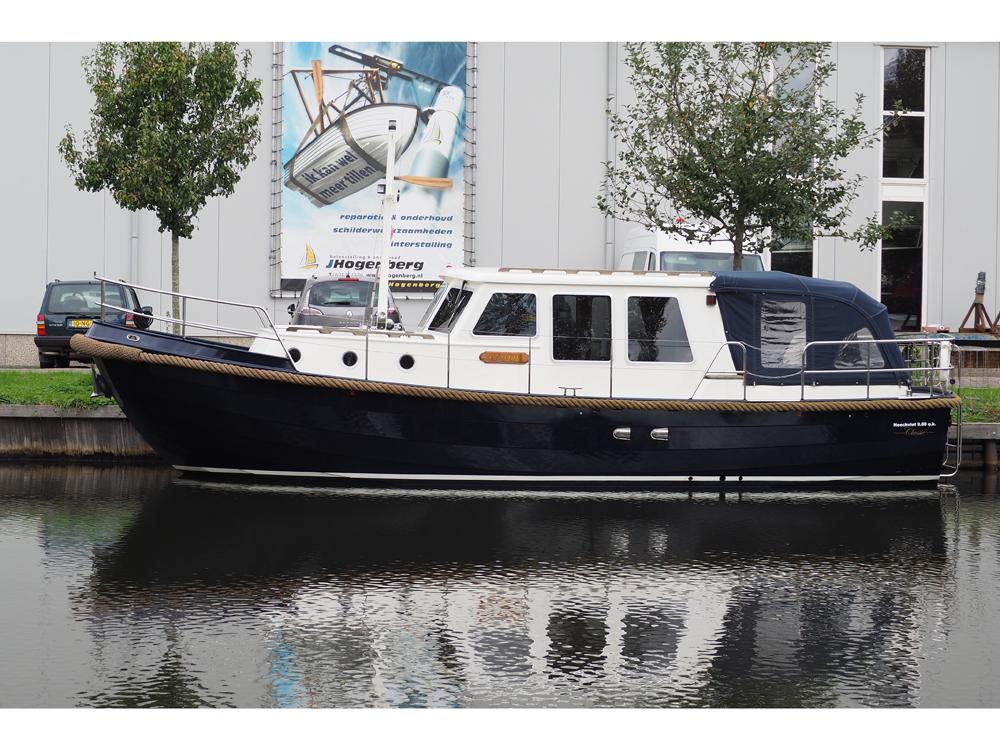

Heechvlet 980 Classic OK
headingdetails Heechvlet 980 Classic OK
€ 115.000
- slaapplekken
2 + 4 - bouwjaar
2002 - ligplaats
Scheerwolde - categorie
Motorjacht
Contactpersoon
Willem Beekhuis
06-1973 0566
06-1973 0566
Boeg- en hekschroef, vuilwatertank, walstroom, dubbel glas, douche, etc. Zeer goed ingedeeld en daarmee zeer ruim motorjacht. Verkeert in fraaie staat van onderhoud. Slechts 2,32 m. doorvaarthoogte.
- Afmetingen
9,80 x 3,65 x 0,90 m. - Motor
Iveco Aifo 60 pk (44 kW) Diesel - Bouwmateriaal
Staal - Referentienummer
262045
Algemeen
- Bouwmateriaal
- Staal
- Rompvorm
- Overnaads met knikspant
- Dek
- Staal antislip; Kuip: teak op staal
- Opbouw
- Staal
- Kiel / zwaard
- Kimkielen
- Roer
- 1 x
- Besturing
- Hydraulisch stuurwiel
- Ramen
- Licht getinte Gebo ramen met dubbel glas in aluminium
- Waterverplaatsing
- 8.800 kg.
- Doorvaarthoogte
- 2,32 m.
- Werf
- Osinga Jachtbetimmering, Kompas Jachtbouw
- Ontwerper
- Vripack Yacht Design, Sneek
- Bouwnummer
- 003
Accommodatie
- Materiaal
- Mahonie interieur
- Verblijfsruimtes
- Stuurhuis, Voorschip
- Hutten
- 1
- Slaapplaatsen
- 2 + 4
- Stahoogte stuurhuis
- 1,95 m.
- Stahoogte voorschip
- 1,90 m.
- Bedmaat voorschip
- 2,10 x 0,90 m. (2 x)
- Bedmaat stuurhuis
- 1,97 x 1,10 m.
- Bedmaat kuip
- 2,40 x 1,25 m.
- Toilet
- Toiletruimte met een RM69 pomptoilet en wastafel
- Douche
- In toiletruimte
- Radio
- JVC radio-CD speler
- Kooktoestel
- 4 - Pits gas
- Magnetron / combi oven
- Tristar
- Koelkast
- 55 Liter
- Verwarming
- Eurom elektrisch; hetelucht voorbereid
Motor
- Merk / type
- Iveco Aifo 8141 M08
- Vermogen
- 60 Pk, 44 kW
- Aantal cilinders
- 4
- Koelsysteem
- Interkoeling
- Bouwjaar
- 2002
- Aantal motoren
- 1
- Uren
- 1.700
- Brandstof
- Diesel
- Brandstoftank(s)
- 2 x 150 Liter staal met mangaten
- Keerkoppeling
- PRM hydraulisch
- Aandrijving
- Schroefas water gesmeerd
- Stuwdruklager
- Aquadrive
- Kruissnelheid
- 6 Kn.
- Maximale snelheid
- 7 Kn.
- Meetinstrumenten
- Toerenteller, Watertemperatuur, Oliedruk (alle VDO)
- Boegschroef
- Max Power 60 kgf
- Hekschroef
- Max Power 60 kgf
Electra
- Spanning
- 12 (en 220 Volt)
- Accu's
- 1 x 120 Ah, 2 x 165 Ah
- Walstroom
- Met aardlekschakelaar
- Dynamo
- 1 x 12 Volt
- Acculader
- Mastervolt Ivo Smart 12/40-3 40 A.
- Omvormer
- Skytronic 1.000 W. (niert aangesloten en derhalve werking onbekend)
- Diodebrug
- Ja
- Scheidingstrafo
- Victron Isolation Transformer 3.600 W.
- Bedieningspaneel
- 2 x Mastervolt zekeringenpaneel
- Voltmeter
- VDO
- Accu-controle meter
- Mastervolt Mass Inverter Charger Control
Water
- Watertank(s)
- 2 x 175 Liter kunststof met mangaten
- Waterdruksysteem
- Hydrofoor
- Warm water
- Isotemp 40 liter boiler (verwarmd via motor en 220 Volt)
- Drinkwatermeter
- VDO
- Vuilwatertank
- 150 Liter met dekafvoer en pomp
- Vuilwatertankmeter
- VDO (defect)
Dekuitrusting
- Anker
- 1 x
- Ankerlier
- Lofrans Royal mechanisch
- Zeereling
- RVS
- Zwemtrap
- RVS 2 - delig
- Dektent
- Kuiptent met RVS frame
- Buitenkussens
- Kuip
- Zelflozende kuip
- Ja
- Overig
- Mast elektrisch strijkbaar. Met kabelaring en Leguaan
Veiligheid
- Noodhelmstok
- Ja
- Lenspomp
- 3 x QL elektrisch
- Ruitenwisser
- 2 x
- Brandpreventie
- 2 x Brandblusser (moeten gekeurd)
- Gasbun
- Geschikt voor 2 flessen
- Gaskeuring
- Nee
