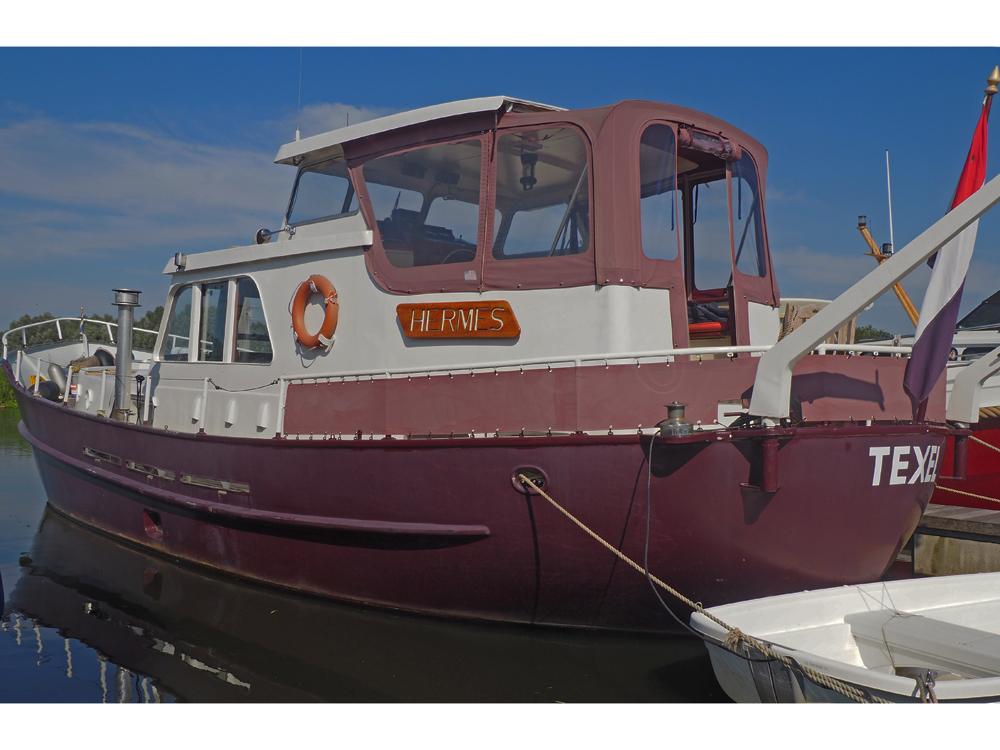

Pieter Beeldsnijder Kotter 1440
headingdetails Pieter Beeldsnijder Kotter 1440
€ 74,500
- Sleeping places
4 + 2 - year built
1975 - Berth
Hattem - Category
Motor yacht
Contactperson
Willem Beekhuis
+316-19730566
+316-19730566
Bow thruster, holding tank, shore power, central heating, plotter autopilot, A.I.S., etc. Robust and spacious motor yacht suitable for long voyages.
- Dimensions
14,40 x 4,25 x 1,60 m. - Engine
Scania Vabis 145 HP (107 kW) Diesel - Construction material
Steel - Reference number
232046
General
- Construction material
- Steel
- Hull shape
- Round bilged
- Deck
- Teak on steel
- Superstructure
- Steel
- Keel / leeboard
- Bilge keels
- Rudder
- 1 x
- Steering system
- Hydraulic wheel steering (with double cylinder) and joystick
- Windows
- Hardened glas 8 mm.
- Displacement
- 35,000 kg.
- Ballast
- 4,000 kg.
- Airdraft
- 3.65 m.
- Yard
- Hakvoort Shipyard, Monnickendam (Holland)
- Designer
- Pieter Beeldsnijder Yacht Design, Edam
- Building number
- 3
The Pieter Beeldsnijder Kotter 1440 is designed for traveling on large waters and a long stay on board. The design was for a motor sailer, but this cutter has always sailed as a motor yacht. 3 copies were built.
The current owner has thoroughly examined this motor yacht technically and has installed a lot of equipment such as a new autopilot, A.I.S. etc.
Accommodation
- Material
- Teak interior
- Saloons
- Saloon, Fore ship with guestscabin, Aftcabin with ownerscabin
- Cabins
- 3
- Berth
- 4 + 2
- Headroom saloon
- 1.95 m.
- Headroom fore ship
- 195 m.
- Headroom aft cabin
- 1.92 m.
- Bedsize guests cabin
- 2.10 x 1.25 m.
- Bedsize front cabin
- 2.30 x 0.50 m.
- Bedsize owners cabin
- 1.90 x 1.60 m.
- Bedsize saloon
- 2.40 x 0.60 m.
- Toilet
- Toilet room with an electric toilet (2021) and sink
- Shower
- In toilet room
- Cooking device
- Etna 4 - flame gas cooker
- Refridgerator
- Isotherm 130 litres
- Heating
- Kabola HR300 10 kW central heating
- Insulation
- Rockwool
- Other
- Sunscreens for the windows in the saloon
Engine
- Brand / type
- Scania Vabis D8-R40
- Power
- 145 HP, 107 kW
- Number of cylinders
- 6
- Cooling system
- Closed keel cooling
- Number of engines
- 1
- Hours
- 4,263
- Fuel
- Diesel
- Fuel tank(s)
- 1 x 1,195 Litres, 1 x 655 litres, 1 x 650 litres and a daytank of 211 litres (all steel)
- Gearbox
- Twin Disc hydraulic
- Propulsion
- Shaft
- Cruising speed
- 7 Kn.
- Max. speed
- 8 Kn.
- Instruments
- Tachometer, Watertemperature, Oilpressure (all VDO), temperature meter for engine room
- Bow thruster
- Kalkman Bêta Super 12 HP 24 Volt
- Other
- Exhaust in engine room replaced in 2020
Electrics
- Voltage
- 12, 24 and 220 Volt
- Batteries
- 1 x 56 Ah, 4 x 165 Ah, 2 x 240 Ah
- Shore power
- With earth leakage switch
- Alternator
- 1 x 120 A. 24 Volt, 1 x 24 Volt, 1 x 12 Volt
- Batterycharger
- Victron Phoenix Multiplus 24/3000/70 70 A. and Victron Skylla -TG 24/25 25 A.
- Generator
- 8 kVA with 3 cylinder Ruggerini diesel 1,500 RPM (out of use)
- Solar panel
- 2 x 325 W. with Epever Tracer MPPT Smartcontroller charge controller and MT50 Remote display
- Inverter
- Victron Phoenix Multiplus 24/3000/70 3,000 W.
- Converter
- 24 - 12 Volt
- Control panel
- Switch panel
- Voltmeter
- 3 x (of which 1 x CN)
- Ampère meter
- 2 x
- Battery-conditionmeter
- Victron BMV-600
Water
- Water tank(s)
- 1.500 Litres divided over 2 steel tanks
- Pressure system
- Electric
- Hot water
- 16 Litres Plieger water heater (heated over 220 Volt)
- Holding tank
- 200 Litres synthetic with pump
- Other
- With freshwater filters
Navigation and electronics
- Navigation ligths
- Yes
- Log / speed
- Display on Simrad plotter
- Depth sounder
- Raymarine i40 and display on Simrad plotter
- Autopilot
- Simrad TU80 with Simrad Precision-9 compass
- Rudder position
- VDO and display on Simrad plotter
- GPS
- Furuno GP-32
- Chartplotter
- Simrad 9 inch
- VHF
- Simrad RS20 and Sailor Compact VHF RT2048 (for listening out)
- A.I.S.
- EM-TRAK B100 AIS Class B
- Navtex
- Furuno Navtex NX-300
Deck equipment
- Anchor
- 1 x
- Anchor winch
- Electric
- Deckwash pump
- 220 Volt
- Railing
- Steel on a steel bulwark
- Davits
- Steel
- Cover
- Round aft deck
- Upholstery
- Aft deck
Safety
- Bilge pump
- None, but there is a bilge alarm for the engine room and aft cabin
- Ventilator
- Engine room
- Wiper
- 1 x
- Search light
- Yes
- Watertight door
- In engine room
- Fire prevention
- 4 x (of which 3 x tested)
- Gas locker
- Suitable for 2 bottles
- Gas inspection
- April 2023
