Doggersbank 1230
headingdetails Doggersbank 1230
- Sleeping places
6 + 3 - year built
1977 - Berth
Meppel - Category
Motor yacht
Contactperson
Willem Beekhuis
+316-19730566
+316-19730566
SOLD!
- Dimensions
12,30 x 3,95 x 1,20 m. - Engine
Ford Lehman 120 HP (88 kW) Diesel - Construction material
Steel - Reference number
232001

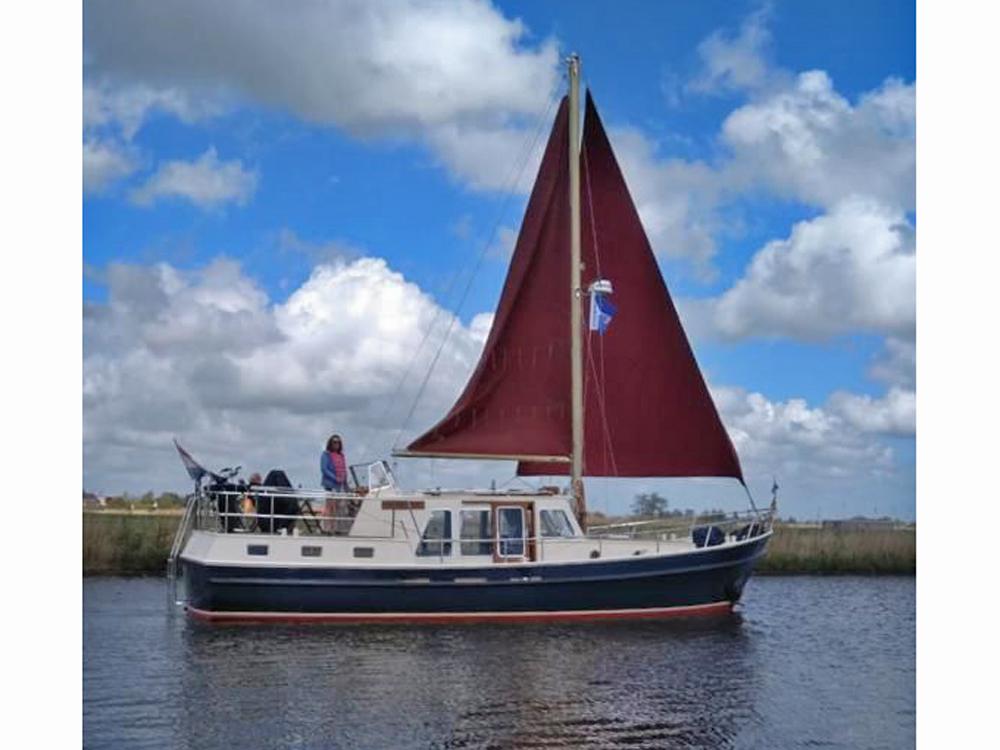

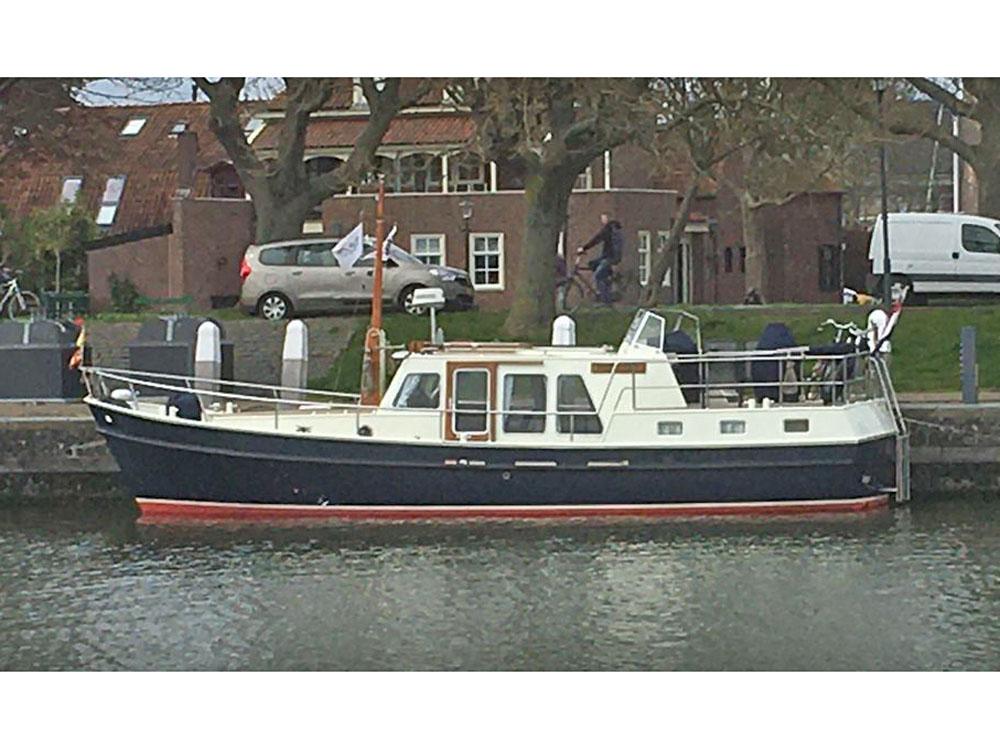

General
- Construction material
- Steel
- Hull shape
- Round bilged
- Deck

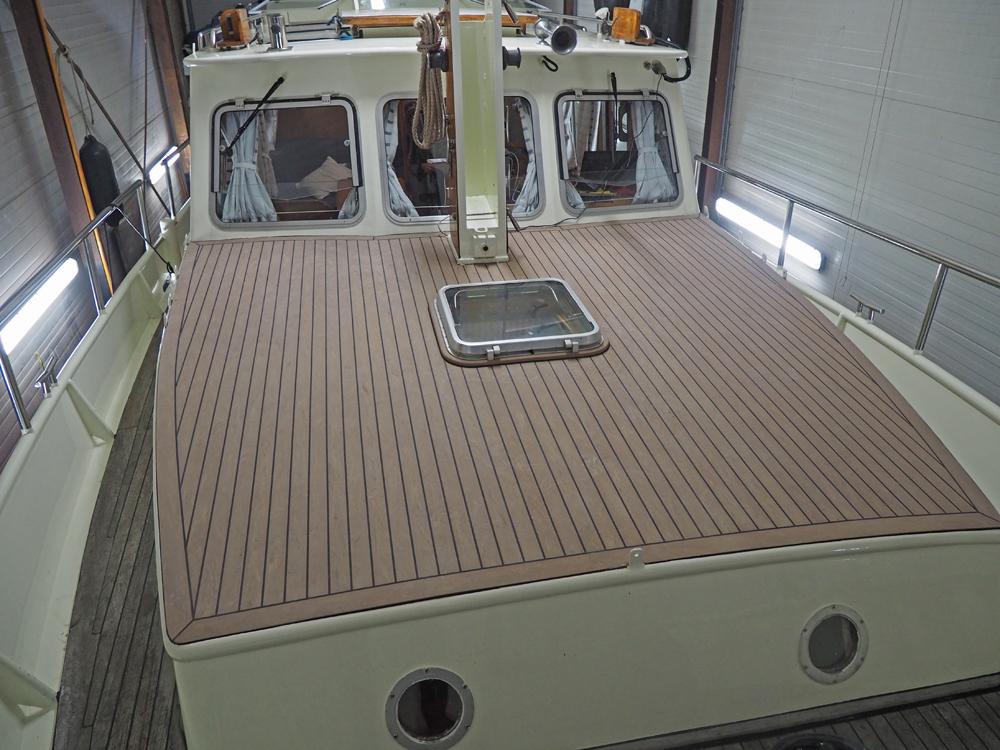

- Aft deck (2006) and side decks teak on steel; Roof fore ship plastic teak (2021) on steel
- Superstructure
- Steel
- Keel / leeboard
- Bilge keels
- Rudder
- Becker rudder
- Steering system
- Hydraulic double wheel steering (steering pump and steering cylinder from 2007) and Followup gear shifting (2012)
- Windows
- Rafa windows in aluminium frames
- Displacement
- 17,000 kg.
- Airdraft
- 2.90 m.
- Yard
- Jachtbouw B. Zwaan & Zonen B.V., Katwijk (Holland)
- Designer
- Dick Boon

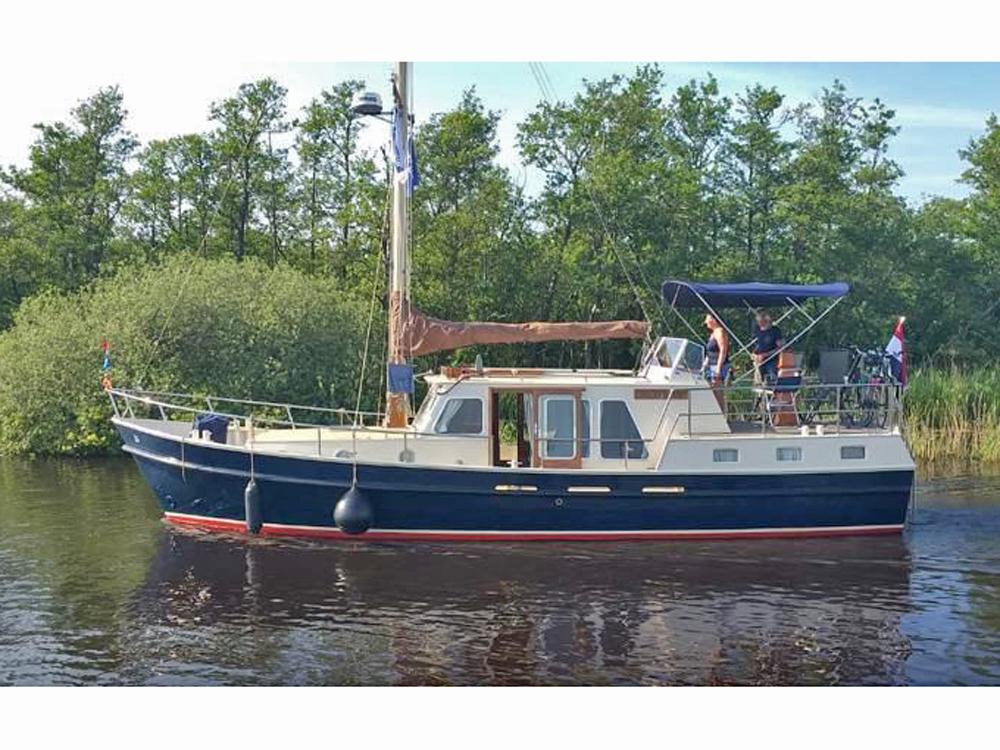

This Doggersbank 1230 was built as a motorsailer and sailed as such by the current owner. She is in a beautiful state of maintenance.
From 2008 to the present, the yacht has undergone a refit:
- 2008: Bow thruster and generator;
- 2012: Refit of the interior, with the wheelhouse and toilet/shower room being newly paneled. Upholstery and curtains, A.I.S., depth sounders, electrical installation modernized;
- 2013: Underwater hull blasted and put in epoxy;
- 2017: Radar and Navigation;
- 2020: Overhauled engine installed, stainless steel railing;
- 2021: Plastic teak on the cabin deck, hull painted, water tank cleaned and treated with epoxy, stainless steel bathing ladder, battery charger; 2022: Superstructure painted.
This Doggersbank 1230 is issued with 3 2-person cabins!
Accommodation
- Material
- Teak interior, refitted in 2012; Among other things, wheelhouse and toilet / shower room newly paneled
- Upholstery
- 2012
- Saloons
- Wheel house, Foreship with guests cabin, Aft cabin with owners cabin and guests cabin
- Cabins
- 4
- Berth
- 6 + 3
- Headroom wheelhouse
- 1.93 m.
- Headroom fore ship
- 1.93 m.
- Headroom aft cabin
- 1.88 m.
- Bedsize guests cabin
- Fore ship: 1.90 x 0.89 m. (2 x); Aft cabin: 2.00 x 0.87 m. (above) en 2,00 x 0,71 m. (below)
- Bedsize front cabin
- Dinette: 1.90 x 1.06 m.
- Bedsize owners cabin
- 1.92 x 1.18 m.
- Bedsize wheelhouse
- 1.97 x 0.66 m.
- Toilet
- Toilet room with an electric toilet and sink
- Shower
- In toilet room
- Television
- Audio Sonic
- Radio
- Marquant (defective)
- Cooking device
- Etna 4 - flame gas cooker
- Refridgerator
- Isotherm approx. 85 litres (2012)
- Heating
- Central heating heated over Webasto DBW2010 11.6 kW and the engine

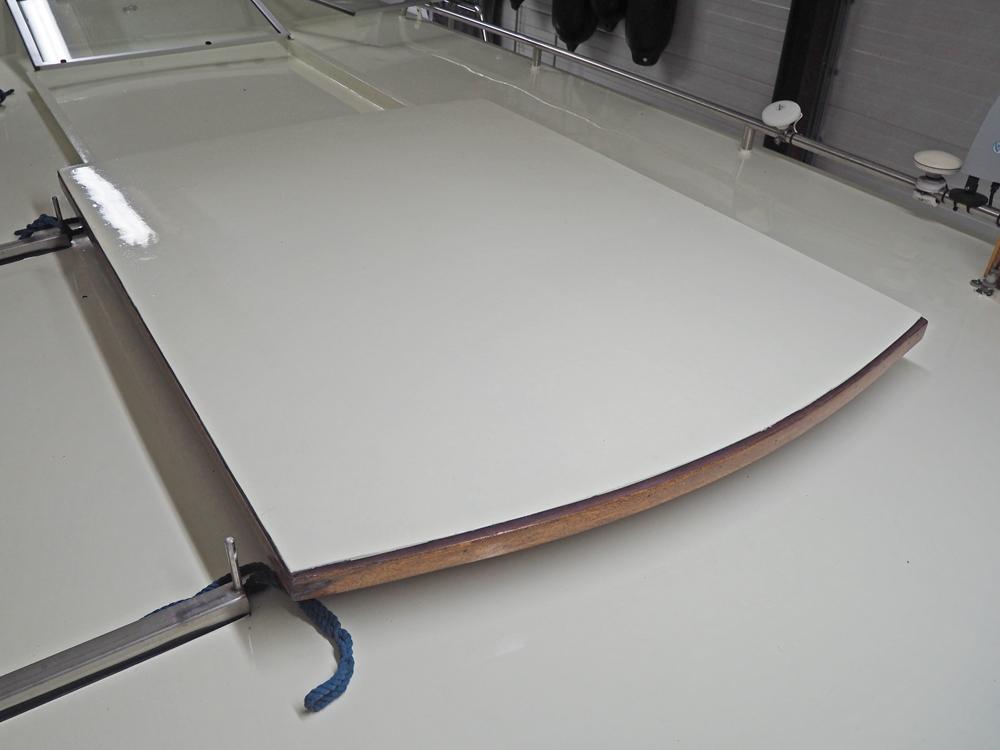

- Sliding hatch
- In wheel house

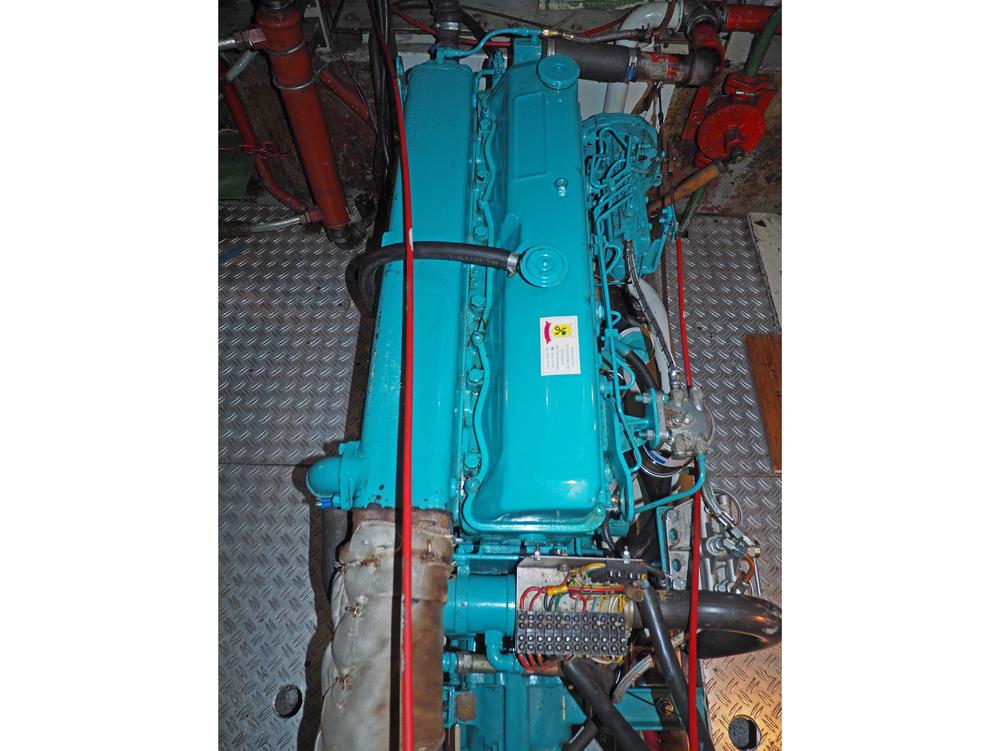

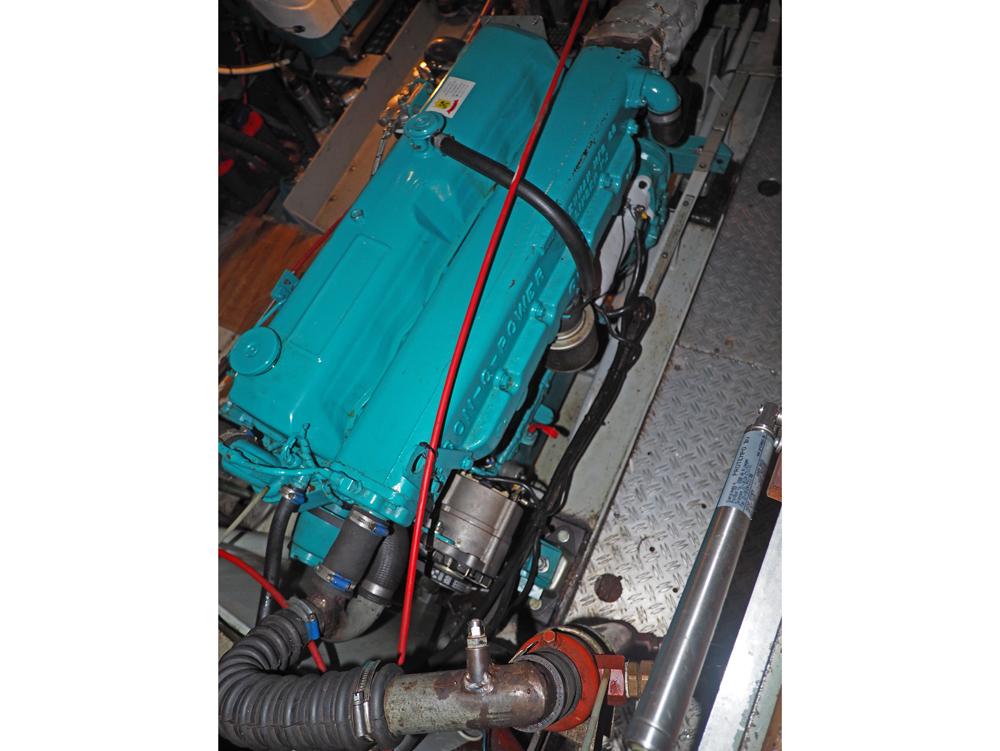

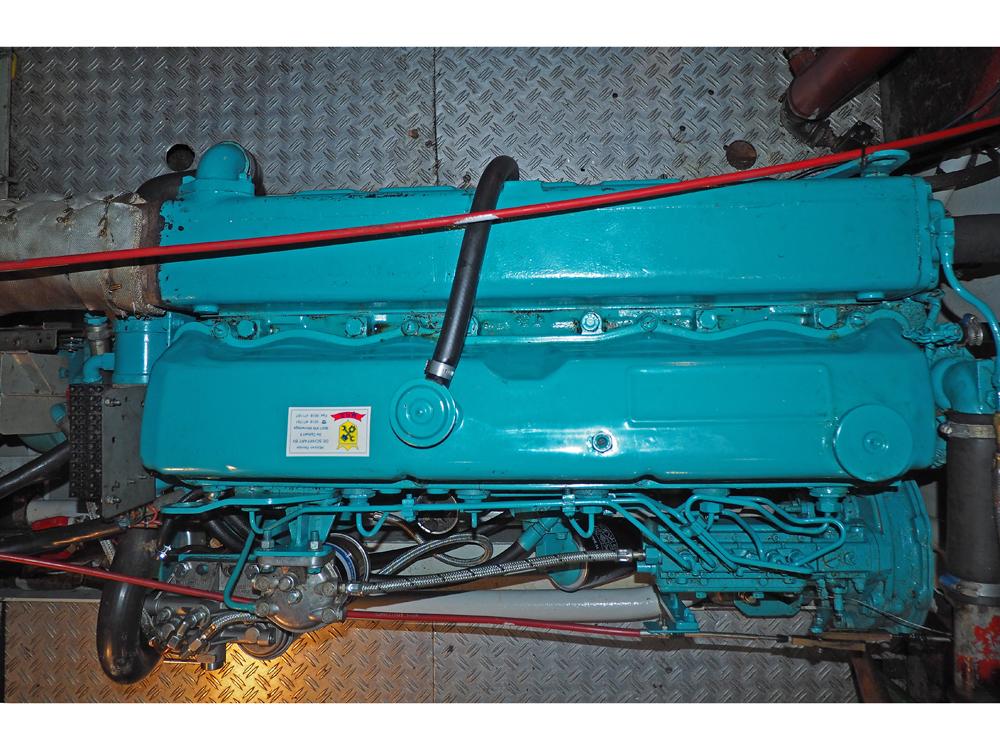

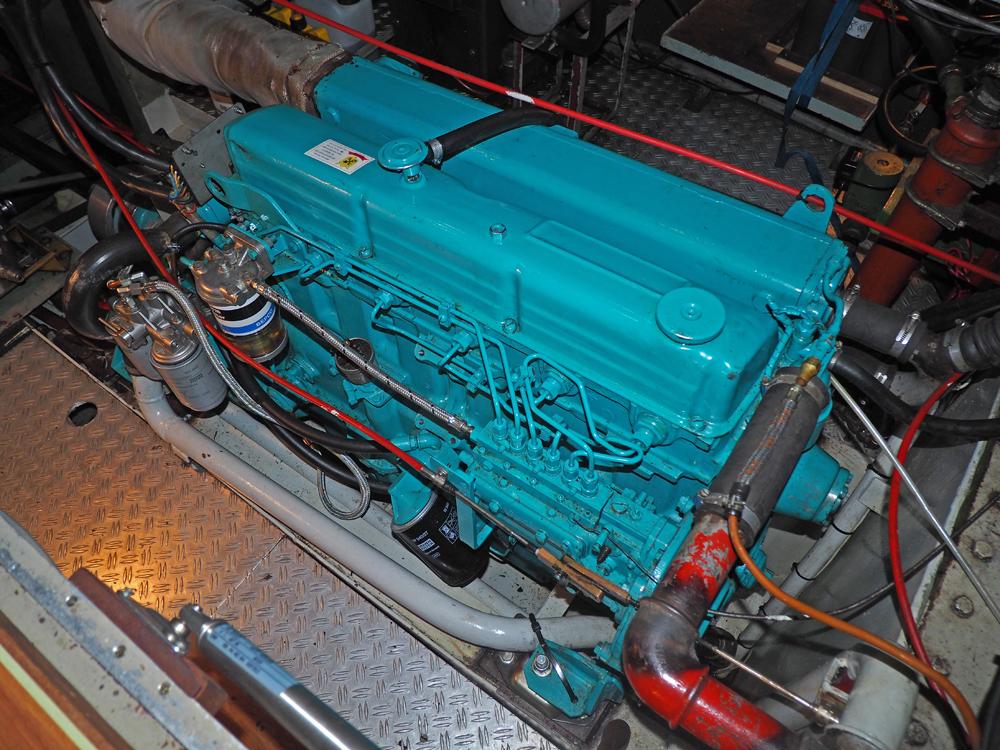

Engine
- Brand / type
- Ford Lehman 2715E
- Power
- 120 HP, 88 kW
- Number of cylinders
- 6
- Cooling system
- Closed cooling
- Year built
- Overhauled engine installed in 2020
- Number of engines
- 1
- Hours
- 704
- Fuel
- Diesel
- Fuel tank(s)
- 1,200 Liter divided over 2 steel tanks
- Tank meter
- VDO

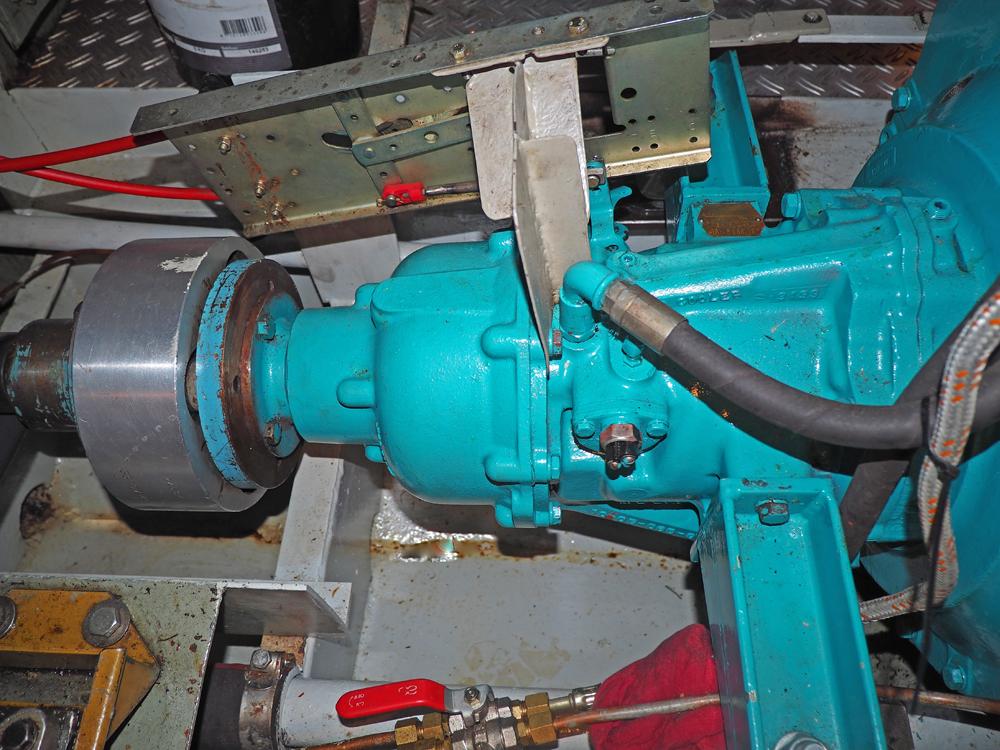

- Gearbox
- Velvet Drive hydraulic
- Propulsion
- Shaft
- Cruising speed
- 6 Kn.
- Max. speed
- 8 Kn.
- Instruments
- 2 x Tachometer, 2 x Watertemperature, 2 x Oilpressure (all VDO)
- Bow thruster
- Sidepower SE100/185T 8.4 HP (2008)
Electrics
- Voltage
- 12, 24 and 220 Volt
- Batteries
- 5 x 50 Ah Optima Red Top (2 x from 2021), 2 x 260 Ah (2023)
- Shore power
- With earth leakage switch
- Alternator
- 24 Volt 80 A.
- Batterycharger

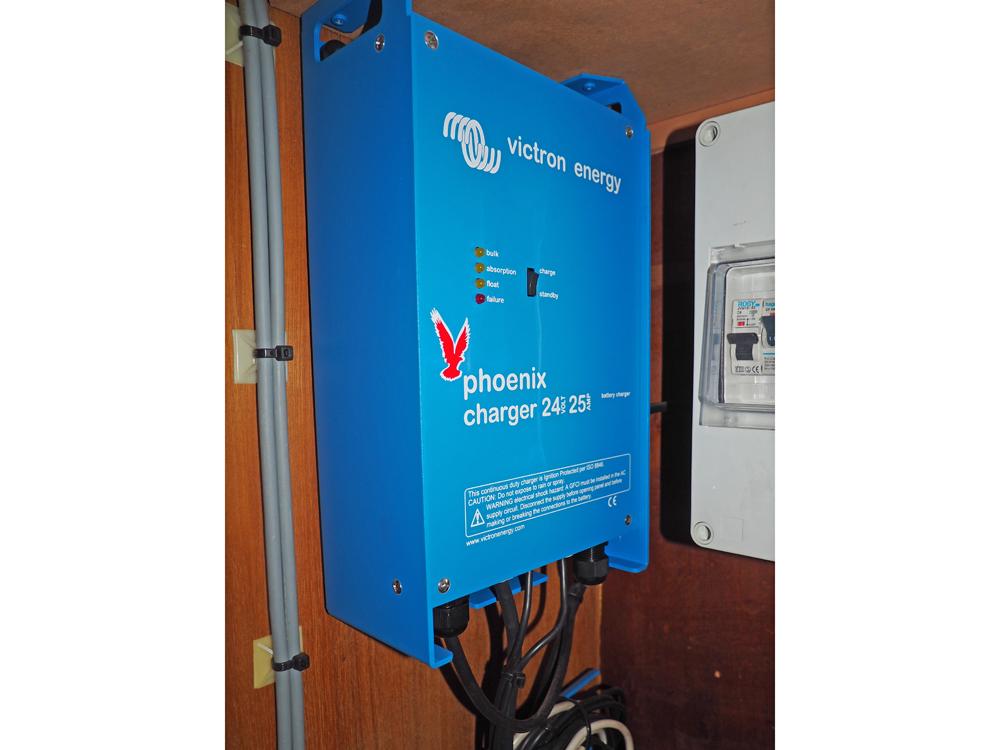

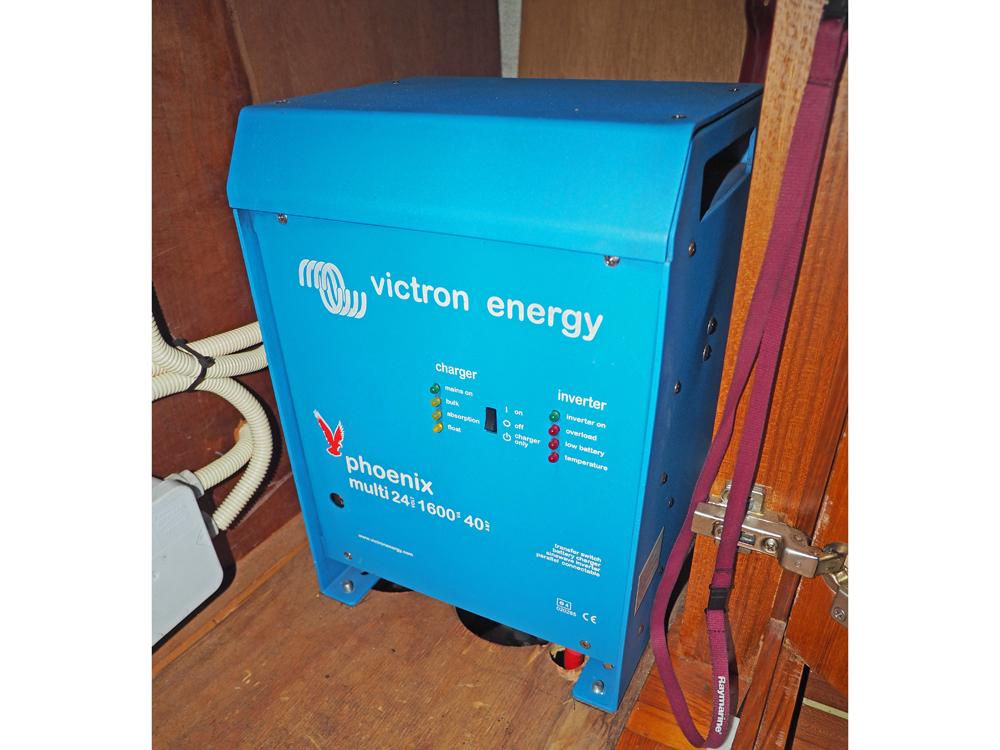

- Victron Phoenix Charger 24/25 25 A. (2021) and Victron Phoenix Multi 24/1600/40 40 A.
- Generator

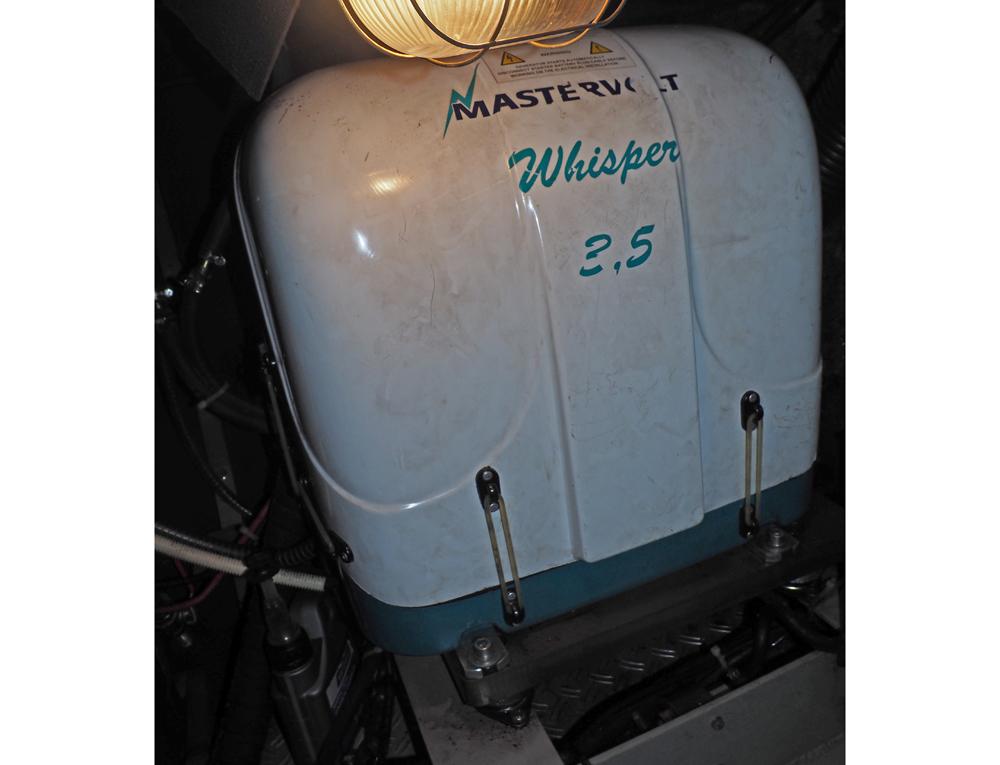

- Mastervolt Whisper 3.5 3 kVA 3,000 RPM
- Inverter
- Victron Phoenix Multi 24/1600/40 1,600 W.
- Converter
- 24-12 Volt (2 x)
- Diode bridge
- 1 x

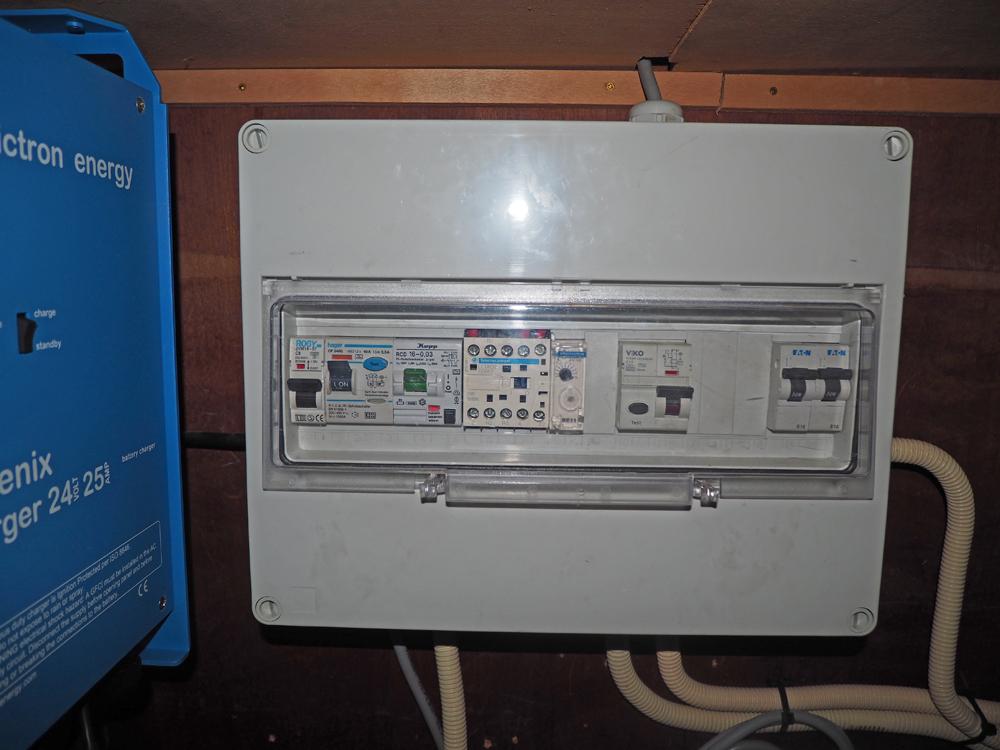

- Control panel
- Switch panel
- Voltmeter
- VDO
- Ampère meter
- VDO
- Other
- Electrical installation modernized in 2012
Water
- Water tank(s)
- 1,200 Litres steel (cleaned and treated with epoxy in 2021)
- Pressure system
- Electric pump electronically controlled
- Hot water
- Rinnai geyser
- Freshwater meter
- VDO
Rigging
- Type
- Mast head rigged
- Mast
- Aluminium
- Standing rig
- Stainless steel
- Boom
- Aluminium
- Mastlowering system
- Using anchor winch

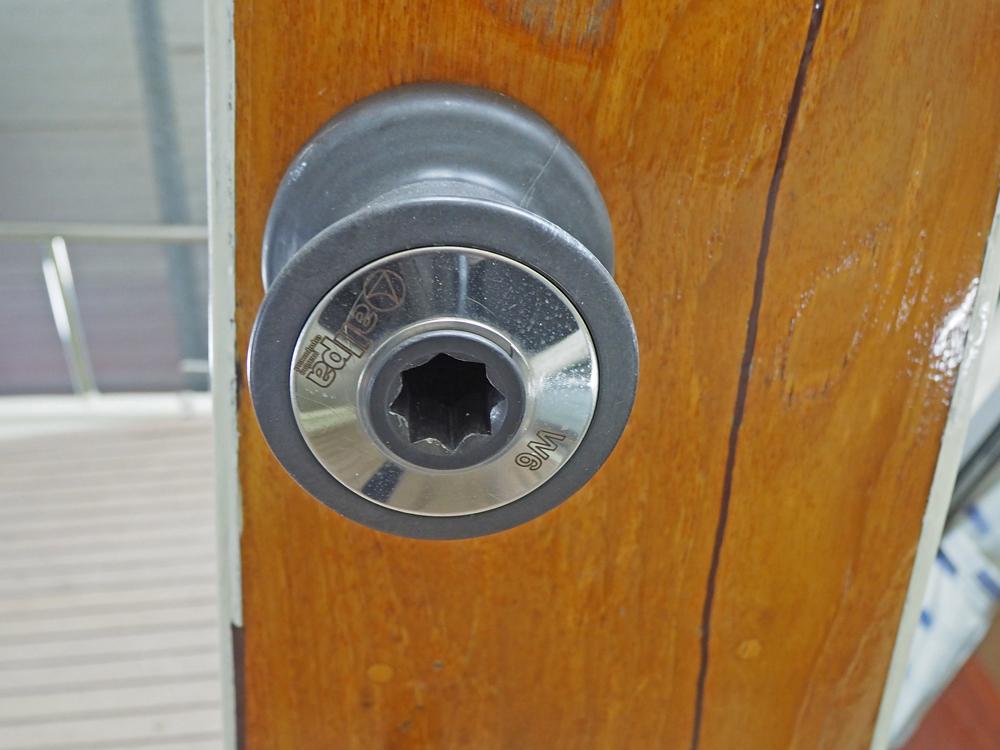

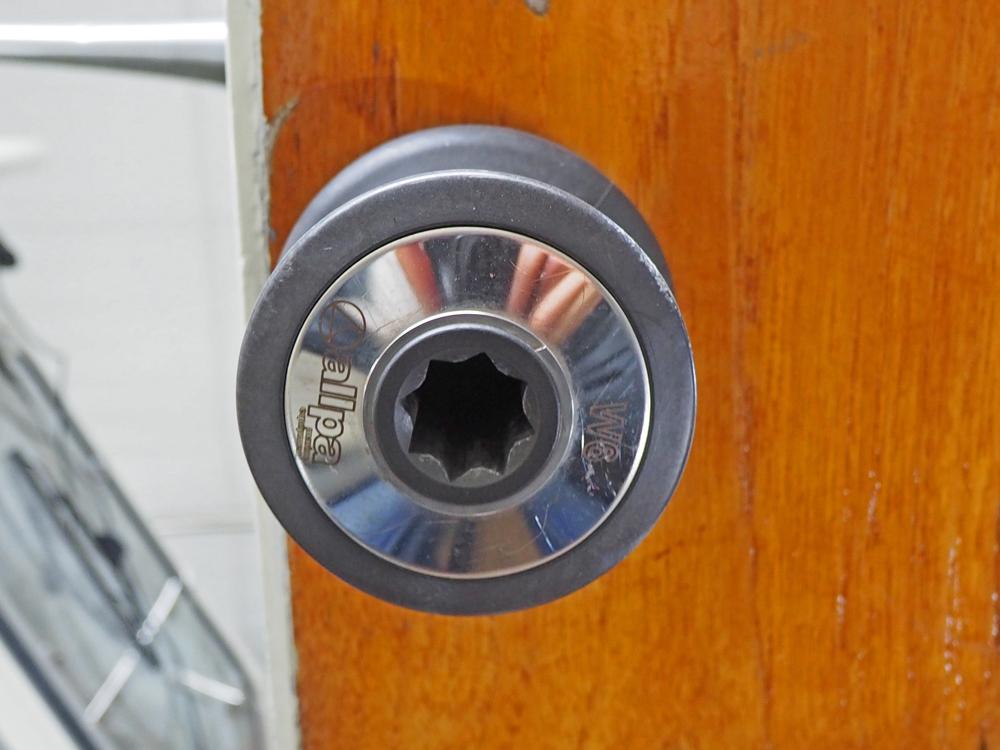

- Winches

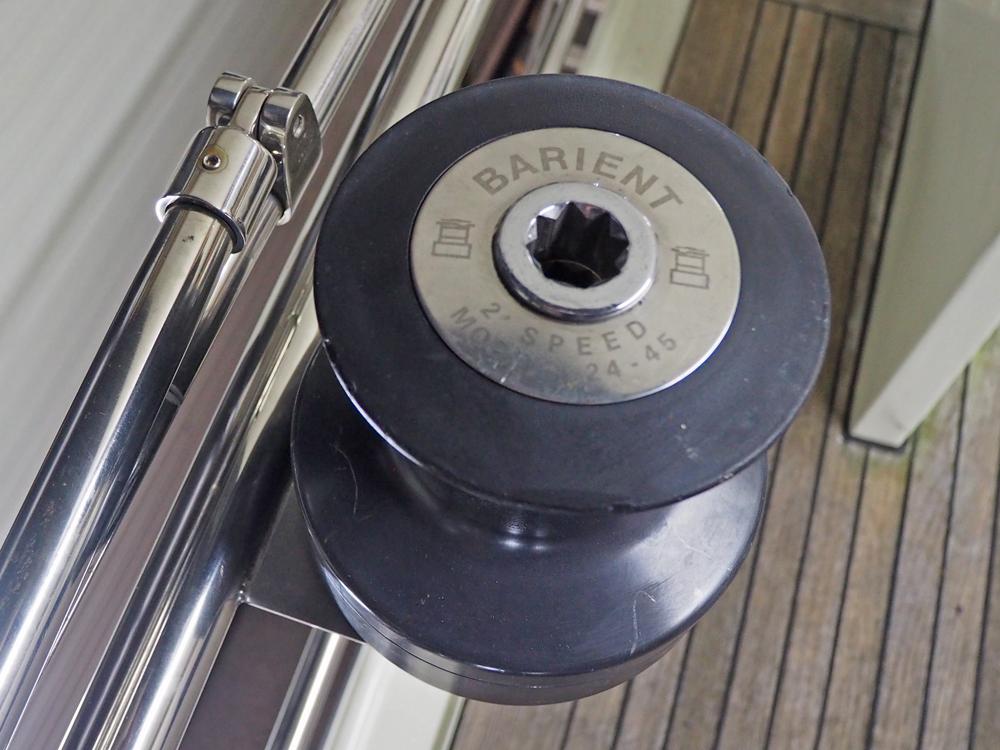

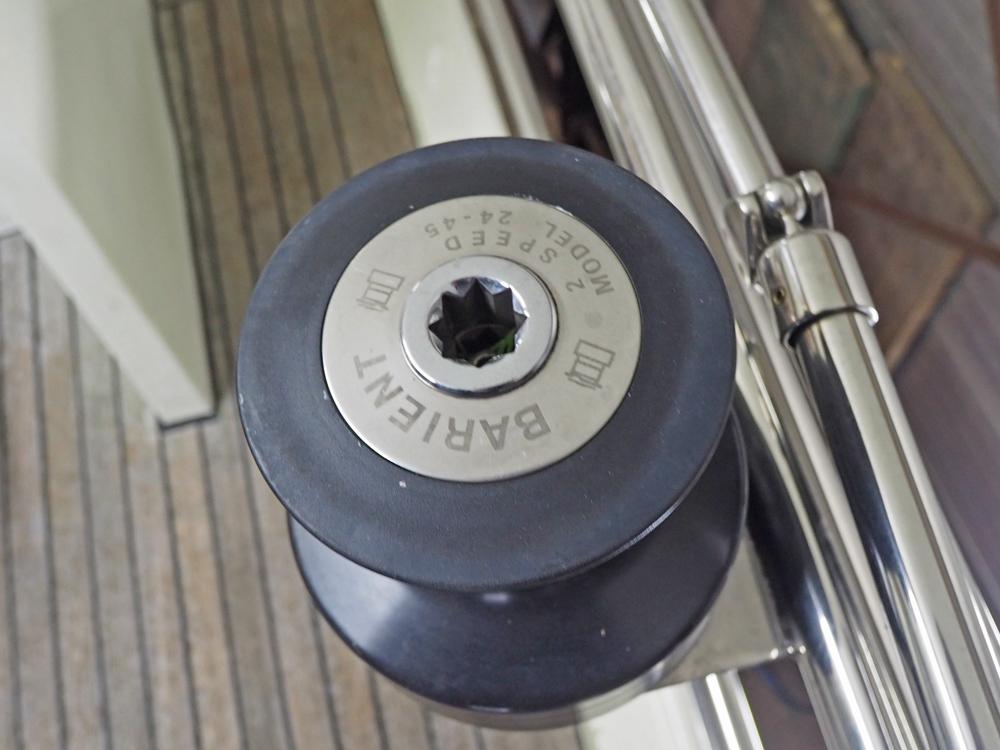

- 2 x Allpa W6, 2 x Barient 2-Speed 24-45
- Sails material
- Dacron
- Mainsail
- 1 x
- Genoa
- 1 x
- Storm jib
- 1 x
Navigation and electronics
- Navigation ligths
- Yes
- Compass

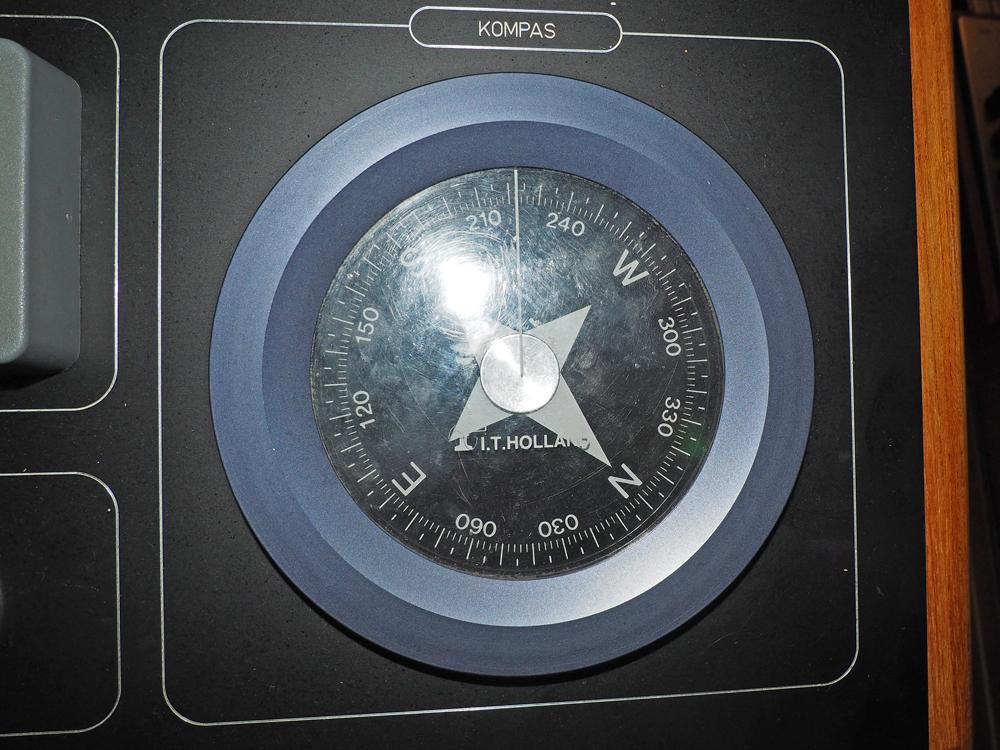

- I.T. Holland (operation not optimal)
- Depth sounder
- 2 x Raymarine ST40 Depth (2012)

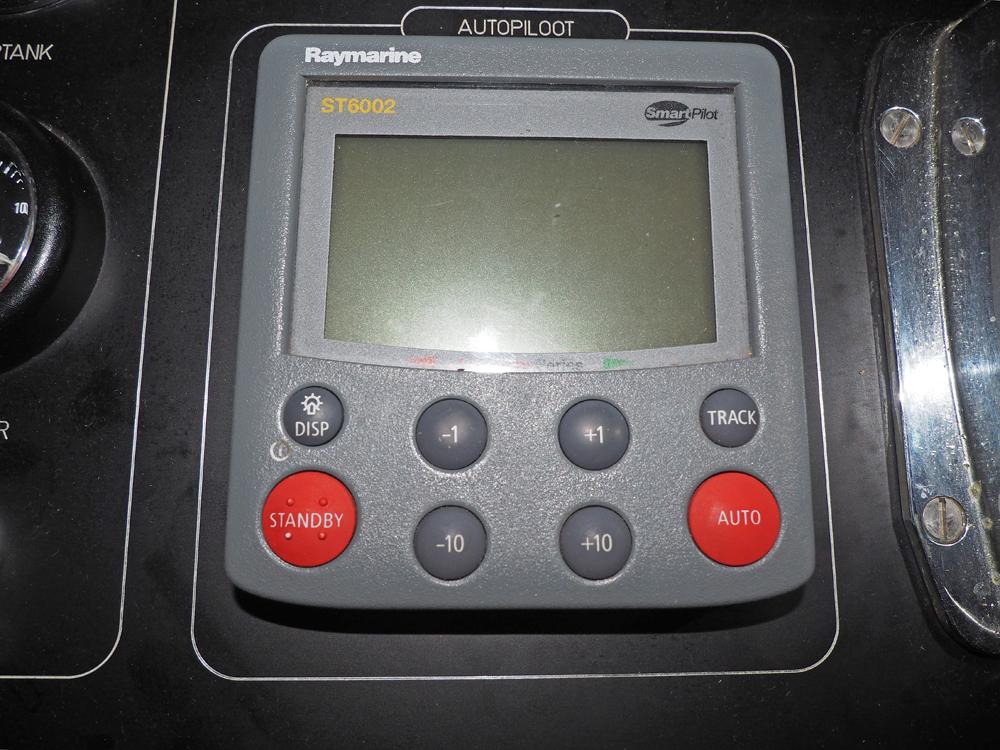

- Autopilot
- Raymarine ST6002 with Raymarine ST100 Remote remote control (both 2012)

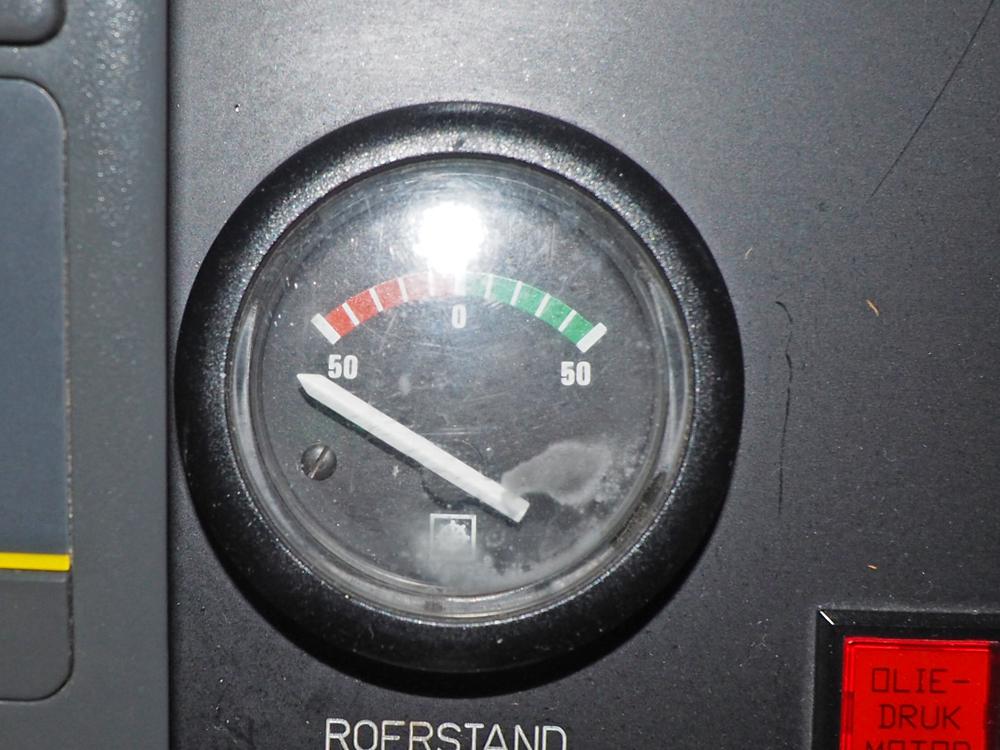

- Rudder position
- 2 x VDO
- Radar
- Simrad G4 (2017)

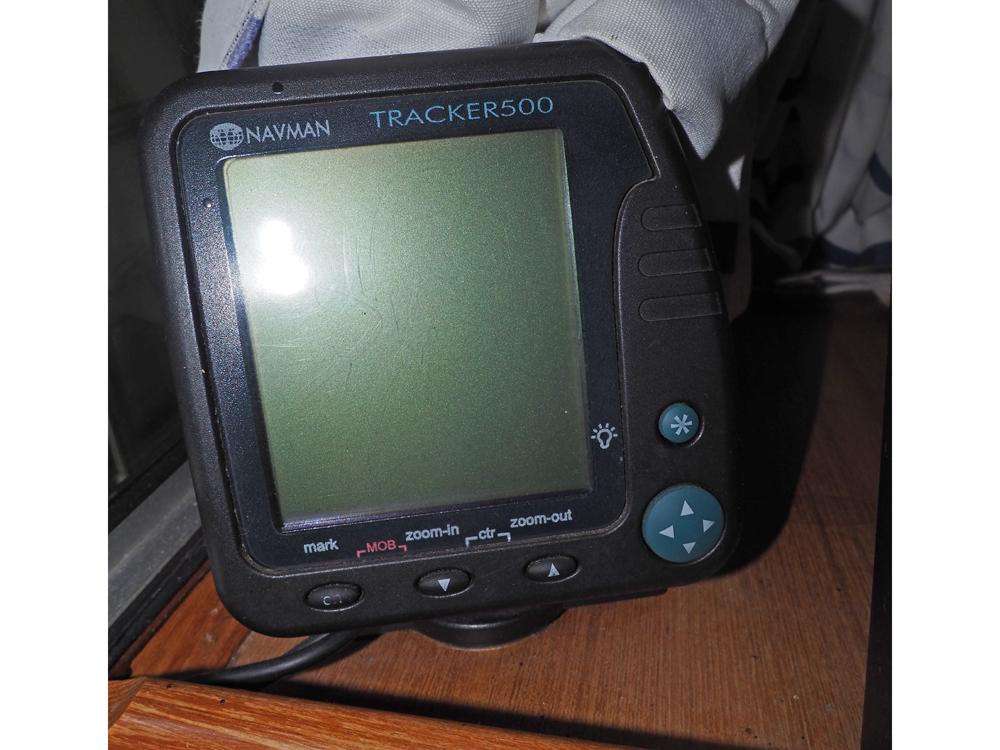

- GPS
- Navman Tracker 500
- VHF
- Sailor RT2048
- A.I.S.
- Send and receive
- Onboard computer
- With Navionics and Navico (Yachtcontrol) charts
- Other

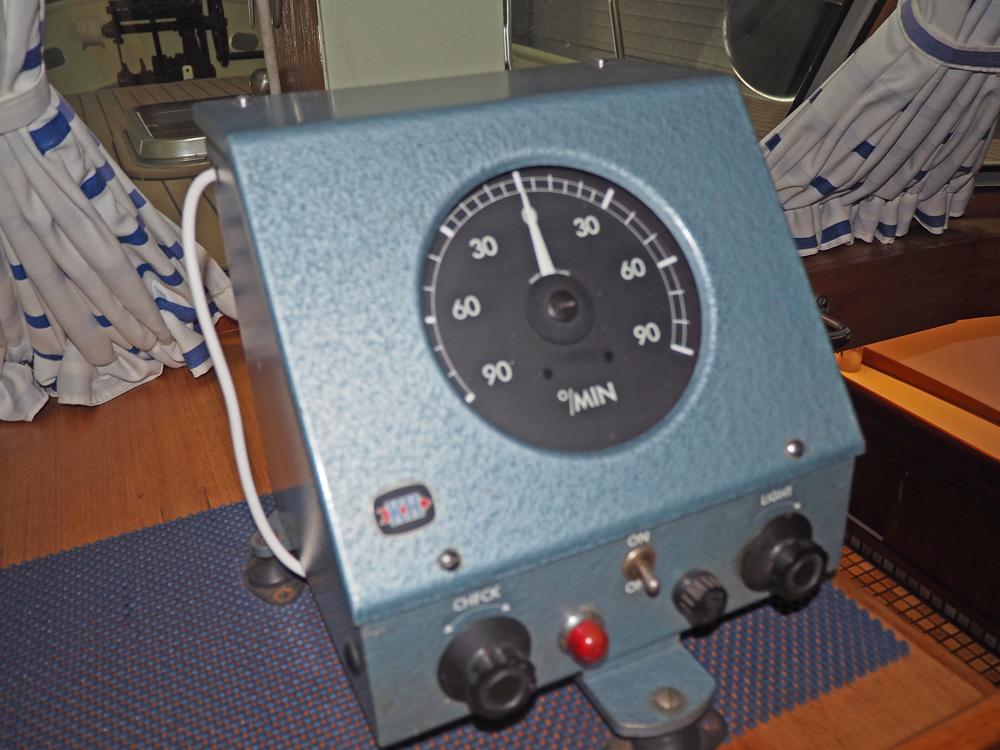

- Kevin Hughes turn indicator

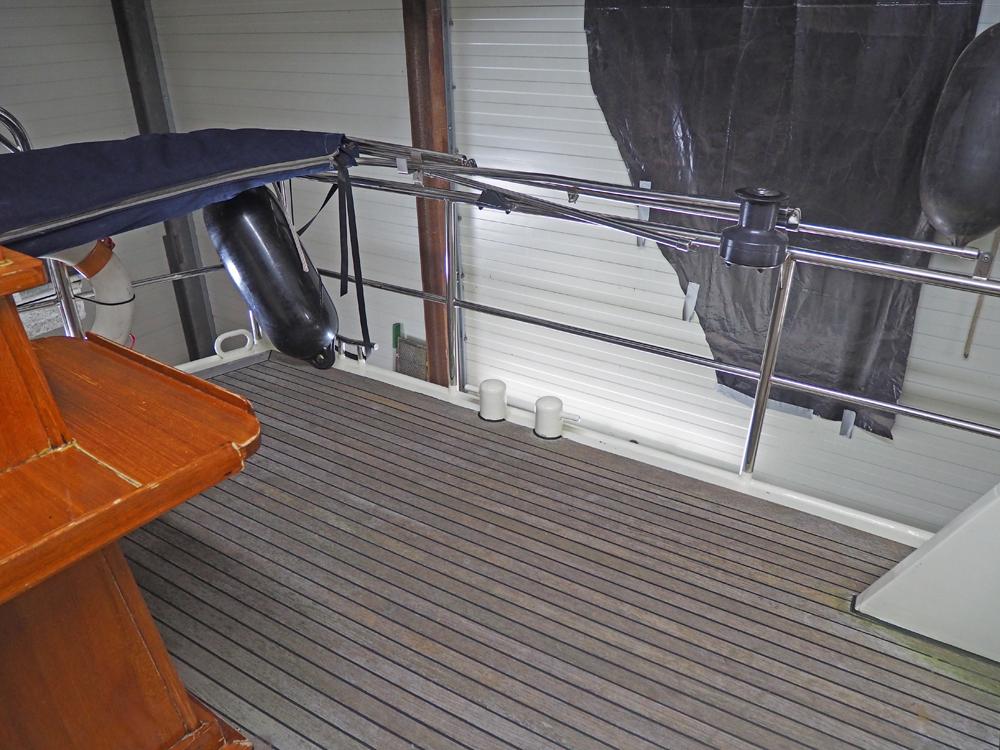

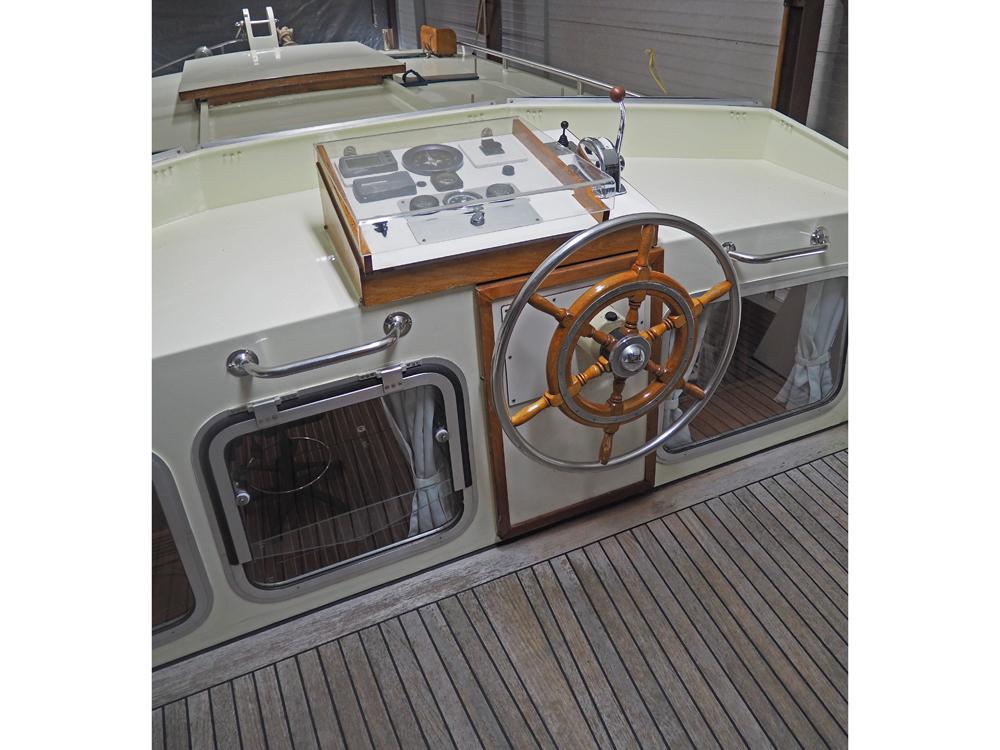

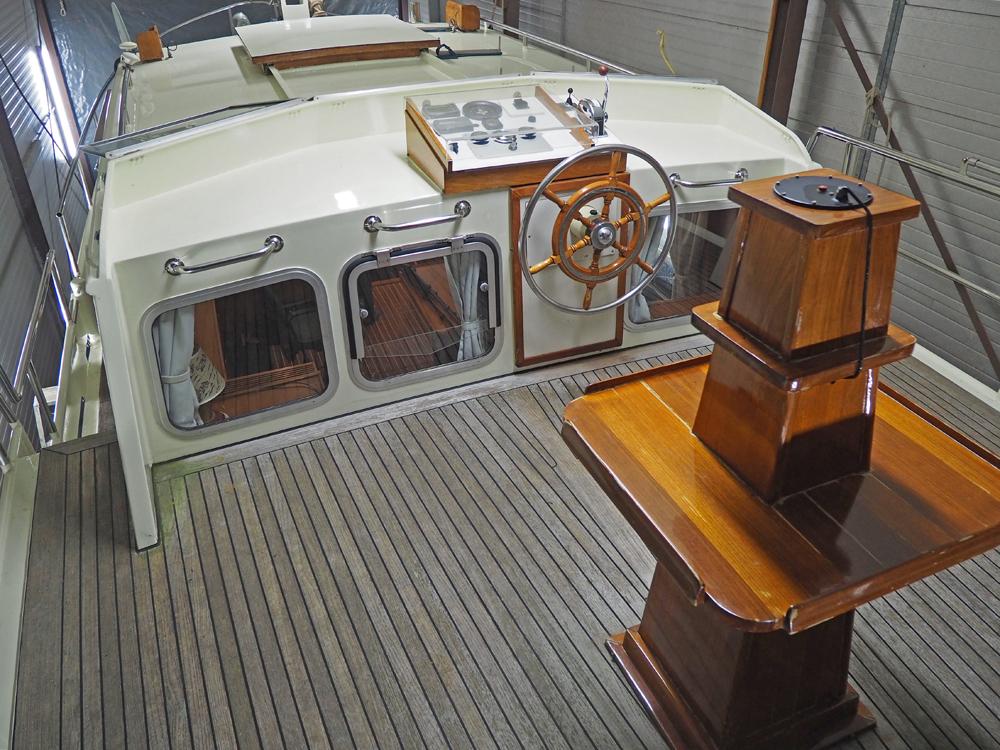

Deck equipment
- Anchor
- 1 x
- Anchor winch
- Mechanic
- Deckwash pump
- Yes

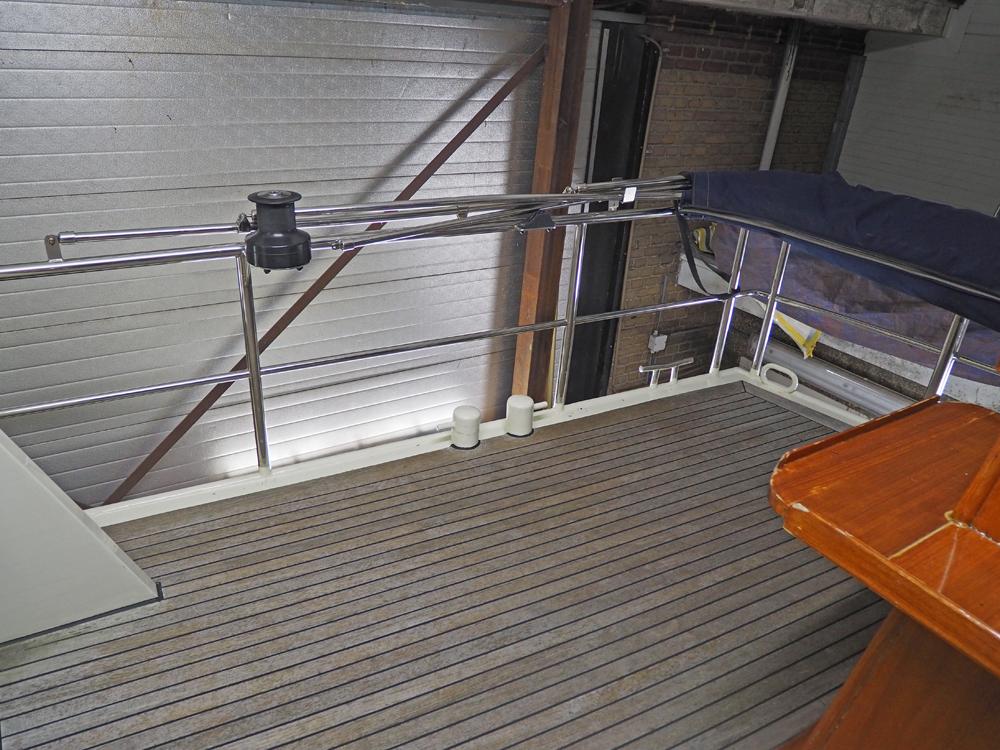

- Railing
- Stainless steel, heavy duty (2020)
- Schwimming ladder
- Stainless steel (2021)
- Davits
- Stainless steel
- Bimini
- With a stainless steel frame

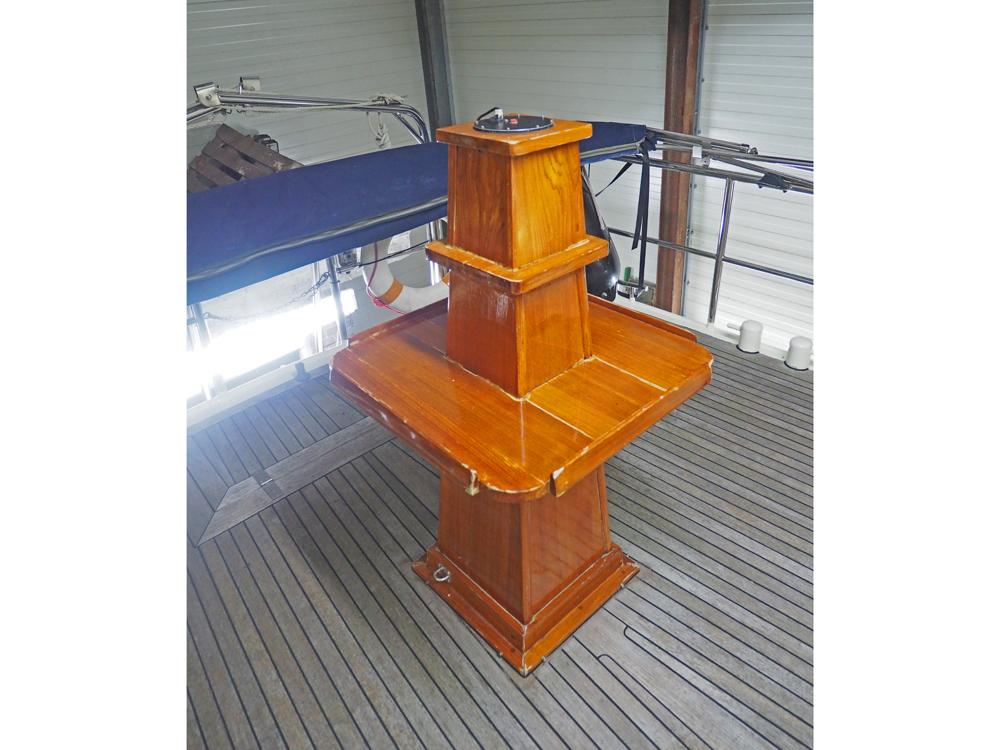

- Cockpit table
- On aft deck
Safety
- Bilge pump
- Electric, divided into 3 compartments
- Wiper
- 2 x
- Fire prevention
- Fire extinguisher

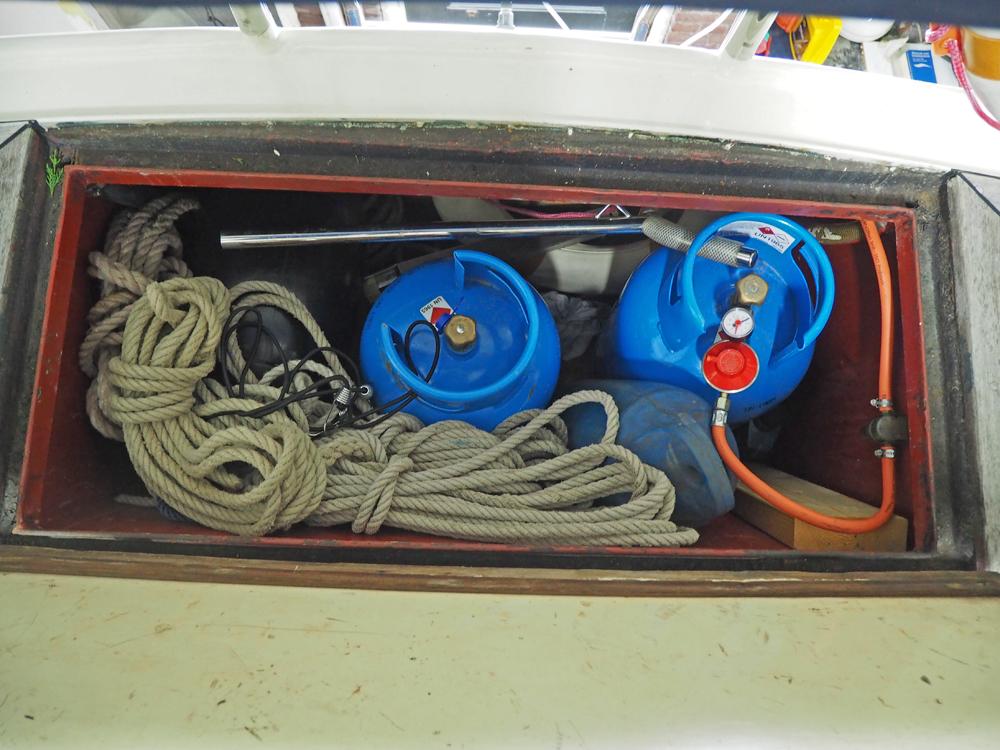

- Gas locker
- Suitable for 3 bottles
